WEH® Fueling Nozzle TK26 CNG

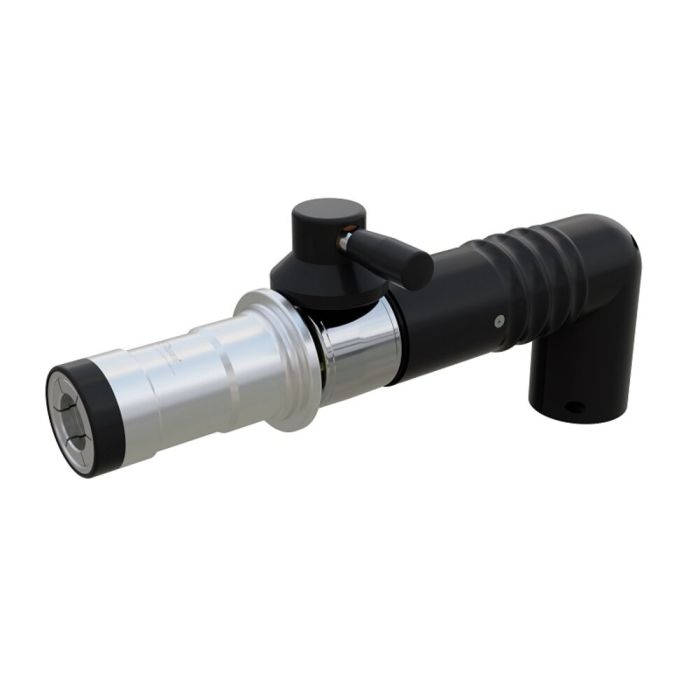

The TK26 CNG is also available in a version with a 90° handle sleeve.
This version allows for optimized hose routing and is ideal for refueling from above or below, especially in tight installation
spaces. The 90° version is available in a lightweight design with an aluminum sleeve, which supports ergonomic, low-effort
handling.
In addition, it features all the proven characteristics of the TK26 CNG with straight hose routing.
Safety
The TK26 CNG offers optimum safety to the operator.
The fueling nozzle remains connected to the receptacle until the gas between inlet valve and receptacle is depressurized.
| Technical Nominal Size | 12 mm |
|---|---|
| Nominal Pressure PN | 200 bar |
| Max. allowable operating pressure PS | 300 bar |
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | UNF 9/16"-18 male thread, SAE J514, 37° cone |
| Material | Corrosion resistant |
| Sealing Material | Natural gas resistant |
| Design | With plastic thermal protection and gas recirculation |
| Coding | P30HD acc. to ANSI NGV1 / C200 acc. to ISO 14469 PN = 200 bar (3,000 psi) |
| Weight | Approx. 3.0 kg |
| Conformity / Tests / Approvals | In accordance with ISO 14469 |
- 10-μm metal wire mesh filter - customizable
Fueling nozzle for CNG fast filling of buses and trucks at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
