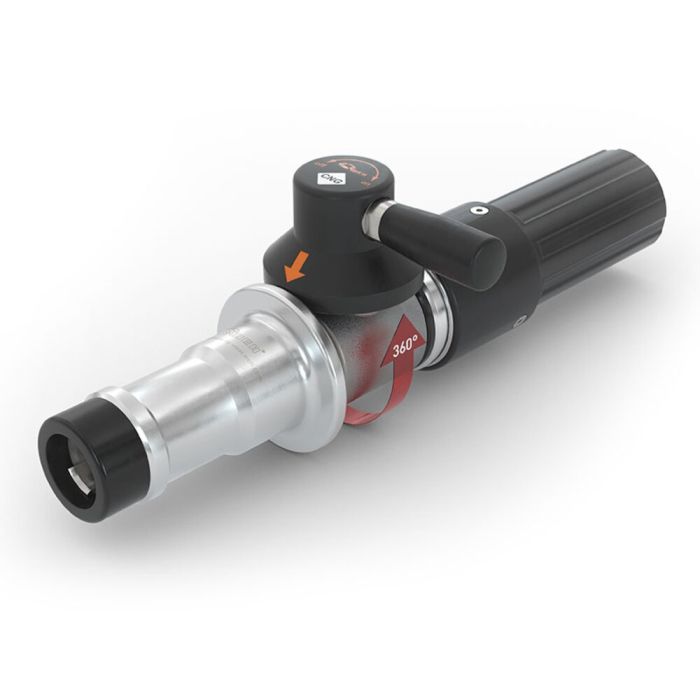

WEH® Mandrino di rifornimento TK16 CNG
The top-selling NGV1 type1 WEH® Fuelling nozzle is very light in weight and provides superior ease of operation.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position for comfortable refuelling. Little effort is required to actuate the lever.
Thanks to maximum flow rates, refuelling is effected within a very short time.
The NGV1 fuelling nozzle is available for two different pressure stages: 200 bar (P30) and 250 bar (P36).
The twin hose system of the type1 fuelling nozzle enables recirculation of the vented gas.
The product range also includes suitable dispenser mountings, hose sets and fittings.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressure Range | P30 secondo ANSI NGV1 / B200 secondo ISO 14469<br>PN = 200 bar | PS = 300 bar |
| Nominal Pressure PN | 200 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Design | Con rivestimento di isolamento termico in materiale sintetico e sistema di recupero del gas |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
| Weight | Circa 1,75 kg |
| Approval | Gli apparecchi soddisfano lo standard ANSI NGV1-2006. |
- Codifica per stadio di pressione / tipo di gas
- Color coded impact protection (200 bar / 3000 psi black)
- Compatibile con le valvole di carica NGV1 e ISO 14469
- Facilità di gestione
- Valori di flusso massimi -> Tempi di riempimento ridotti
- Materiali di alta qualità
- Impugnatura isolato termicamente
- Recuopero del gas residuo
- Super light -> only 1 750 grams
- Giunto rotante WEH® EASY-TURN a 360° per leva di azionamento
- Meccanismo a pinze segmentate WEH®
Fueling nozzle for CNG fast filling of cars at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
