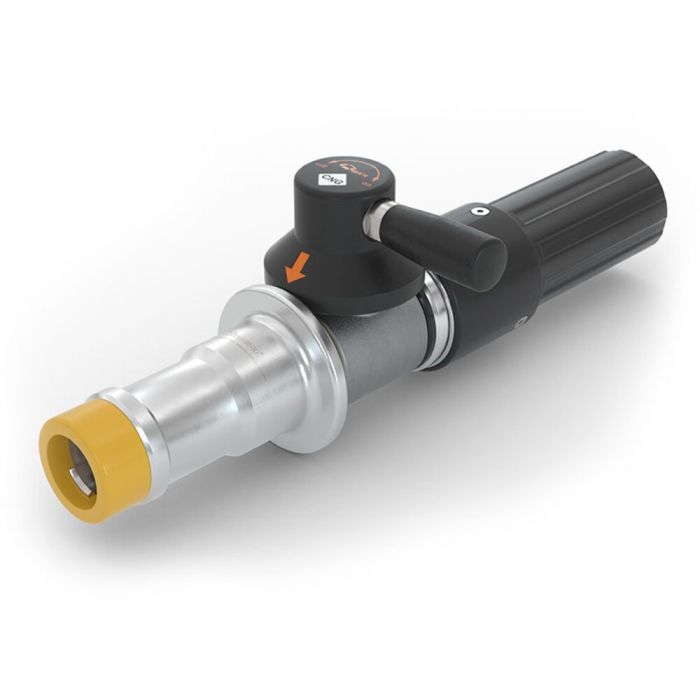

WEH® Mandrino di rifornimento TK16 CNG
The top-selling NGV1 type1 WEH® Fuelling nozzle is very light in weight and provides superior ease of operation.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position for comfortable refuelling. Little effort is required to actuate the lever.
Thanks to maximum flow rates, refuelling is effected within a very short time.
The NGV1 fuelling nozzle is available for two different pressure stages: 200 bar (P30) and 250 bar (P36).
The twin hose system of the type1 fuelling nozzle enables recirculation of the vented gas.
The product range also includes suitable dispenser mountings, hose sets and fittings.
| Technical Nominal Size | 8 mm |
|---|---|
| Pressione nominale (PN) | P36 acc. to ANSI NGV1 / B250 acc. to ISO 14469 PN |
| Pressione di esercizio PS max ammessa | 350 bar |
| Campo di temperatura | -40 °C up to +85 °C |
| Ingresso B1 | UNF 9/16"-18 male thread, SAE J514, 37° cone |
| Materiali | Corrosion resistant |
| Materiali delle guarnizioni | Natural gas resistant |
| Esecuzione | With plastic thermal protection and gas recirculation |
| Peso | Approx. 1.75 kg (3.86 lbs.) |
| Approval | The products comply with ANSI NGV1-2006 |
- Coding for pressure range / gas type
- Color coded impact protection (250 bar / 3600 psi yellow)
- Compatible with receptacles acc. to NGV1 standard and ISO 14469
- Easy operation
- High flow rate -> short filling times
- High-grade materials
- Plastic thermal protection
- Recirculation of the vented gas
- Super light -> only 1 750 grams
- WEH® EASY-TURN 360° swivel joint for actuation lever
- WEH® Jaw Locking Mechanism
Fueling nozzle for CNG fast filling of cars at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
