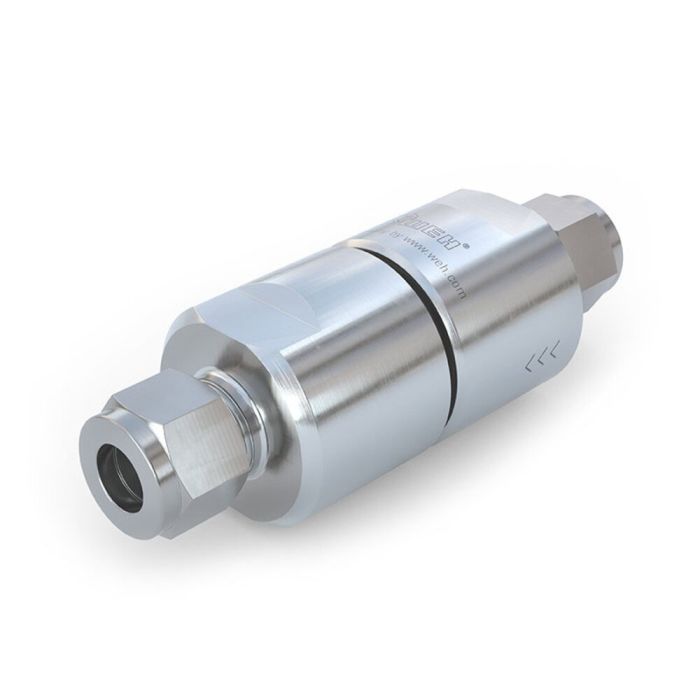

WEH® Filter TSF2 H₂
Contaminants in the gas flow can enter the vehicle‘s storage tank during refueling. These dirt particles in the hydrogen fuel may cause damage to the sealing components. WEH, therefore, offers the WEH® TSF2 H2 Filter Series for clean hydrogen.Solid particles are captured reliably.
The filter element can be removed and is re-usable after having been cleaned.
The WEH® TSF2 H2 Filter is mainly used for fueling stations and dispensers.
In order to meet the different requirements of the dispenser manufacturers, WEH offers a wide variety of connection configurations - tube fitting / female thread on both ends or internal and male thread.
For use as a prefilter in the WEH® TSA2 H2 Inline Breakaway Coupling, WEH offers a special design with external and female thread.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressione di esercizio PS max ammessa | PS = 450 bar |
| Pressure Range | PN = 35 MPa | PS = 45 MPa |
| Nominal Pressure PN | 35 MPa |
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | Tube Ø 3/8", double ferrule fitting |
| Filter Material | 40 μm |
| Design | Incl. fittings (only for filters with tube fitting) |
| Material | Acciaio inossidabile |
| Sealing Material | Restistenti al idrogeno |
- Il dispositivo di filtraggio può essere pulito
- Per idrogeno pulito e filtrato
Filter for installation in hydrogen vehicles and fueling stations.
