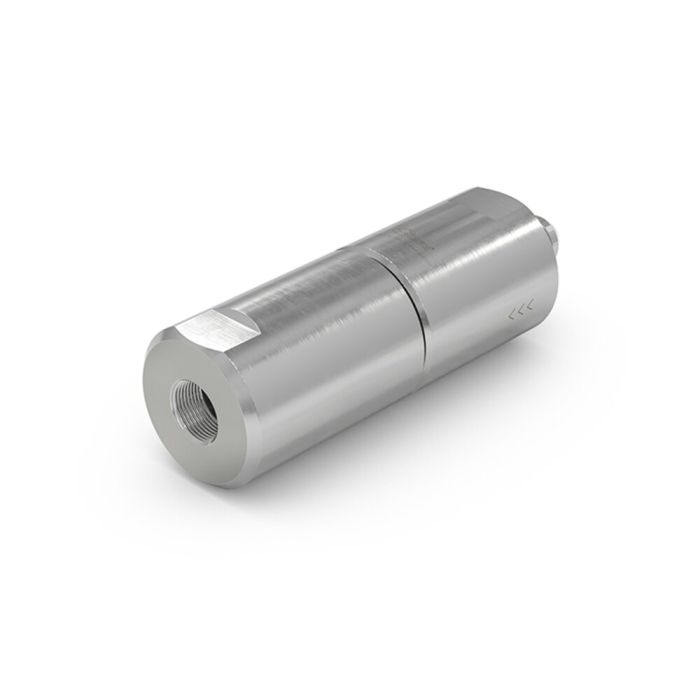

WEH® Filter TSF2 H₂
Contaminants in the gas flow can enter the vehicle‘s storage tank during refueling. These dirt particles in the hydrogen fuel may cause damage to the sealing components. WEH, therefore, offers the WEH® TSF2 H2 Filter Series for clean hydrogen.Solid particles are captured reliably.
The filter element can be removed and is re-usable after having been cleaned.
The WEH® TSF2 H2 Filter is mainly used for fueling stations and dispensers.
In order to meet the different requirements of the dispenser manufacturers, WEH offers a wide variety of connection configurations - tube fitting / female thread on both ends or internal and male thread.
For use as a prefilter in the WEH® TSA2 H2 Inline Breakaway Coupling, WEH offers a special design with external and female thread.
| Diametro nominale (DN) | 8 mm |
|---|---|
| Pressione di esercizio PS max ammessa | PS = 450 bar |
| Pressione nominale (PN) | 35 MPa |
| Campo di pressione | PN = 35 MPa | PS = 45 MPa |
| Campo di temperatura | -40 °C fino a +85 °C |
| Ingresso B1 | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Filter Material | 40 μm |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | Incl. fittings (only for filters with tube fitting) |
- Il dispositivo di filtraggio può essere pulito
- Per idrogeno pulito e filtrato
- Prefiltro per sistemi di sicurezza a rottura programmata Inline
Filter for installation in hydrogen vehicles and fueling stations.
