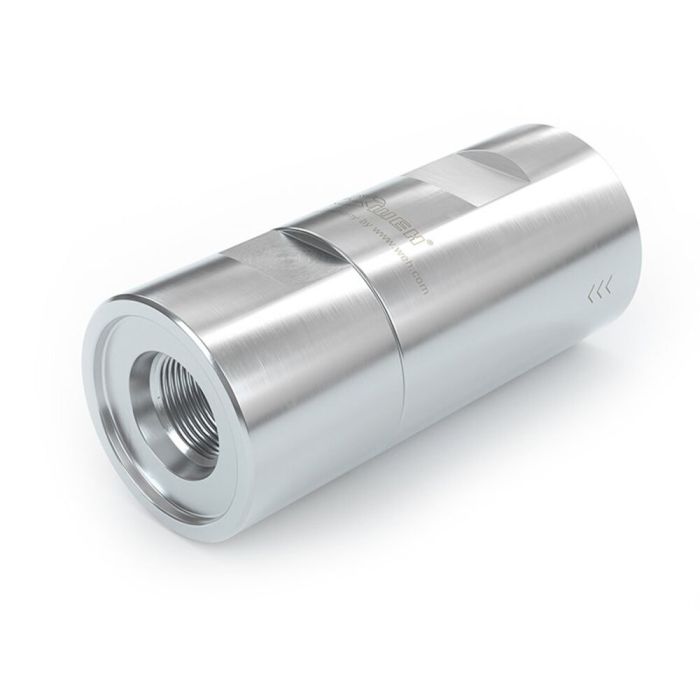

WEH® Filter TSF1 CNG
For cars as prefilter (ECE)
Codice
C1-66532
0,00 €
Contaminants in the gas flow can enter the vehicle‘s storage tank during refuelling. These dirt particles in the natural gas fuel may cause damage to the sealing components.
WEH, therefore, offers CNG filter for clean natural gas. Solid particles are captured reliably.
The TSF1 CNG filter is used for fuelling stations and dispensers as well as onboard CNG powered vehicles. The filter is mainly installed as prefilter in the media inlet between fuelling nozzle and filling hose.
| Diametro nominale (DN) | 8 mm |
|---|---|
| Campo di pressione | PN = 200 bar | PS = 260 bar (ECE) |
| Campo di temperatura | -40 °C fino a +120 °C (ECE) |
| Ingresso B1 | UNF 9/16"-18 femmina SAE J1926-1 |
| Filter Material | 50 μm |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Resistenti al gas metano |
| Approval | ECE R110 |
- Approvazione ECE disponibili
- Per gas metano pulito e filtrato
- Prefiltro per mandrini di rifornimento
Filter for installation as prefilter between fueling nozzle and filling hose. Only use filters with ECE approval for fitment in road legal vehicles.
