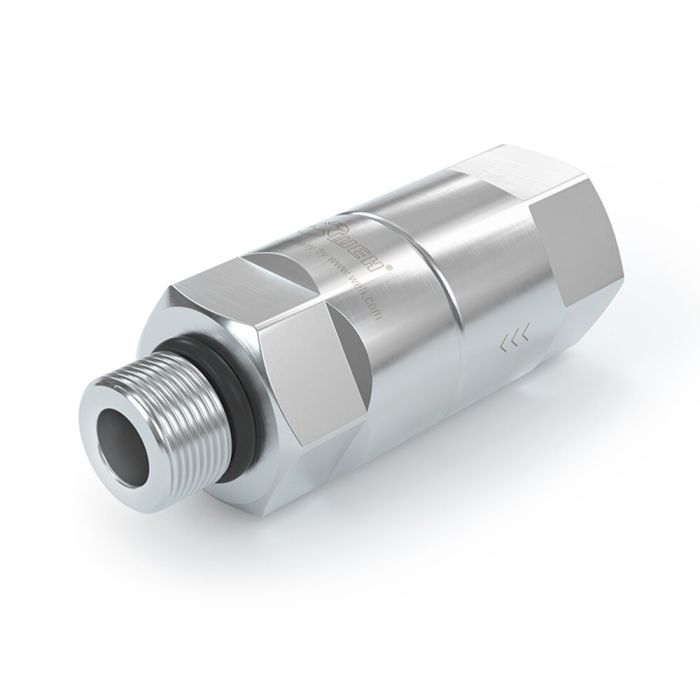

WEH® Filter TSF1 CNG
For fueling stations as prefilter
Codice
C1-100700-X01
0,00 €
Contaminants in the gas flow can enter the vehicle‘s storage tank during refuelling. These dirt particles in the natural gas fuel may cause damage to the sealing components.
WEH, therefore, offers CNG filter for clean natural gas. Solid particles are captured reliably.
The TSF1 CNG filter is used for fuelling stations and dispensers as well as onboard CNG powered vehicles. The filter is mainly installed as prefilter in the media inlet between fuelling nozzle and filling hose.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressure Range | PN = 250 bar | PS = 315 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18-LH female thread, SAE J1926-1 |
| Filter Material | 40 μm |
| Material | Acciaio inossidabile |
| Sealing Material | Resistenti al gas metano |
| Approval | ECE R110 |
- Per gas metano pulito e filtrato
- Per il montaggio tra mandrino di rifornimento e flessibile di rifornimento
- Prefiltro per mandrini di rifornimento
Filter for installation as prefilter between fueling nozzle and filling hose. Only use filters with ECE approval for fitment in road legal vehicles.
