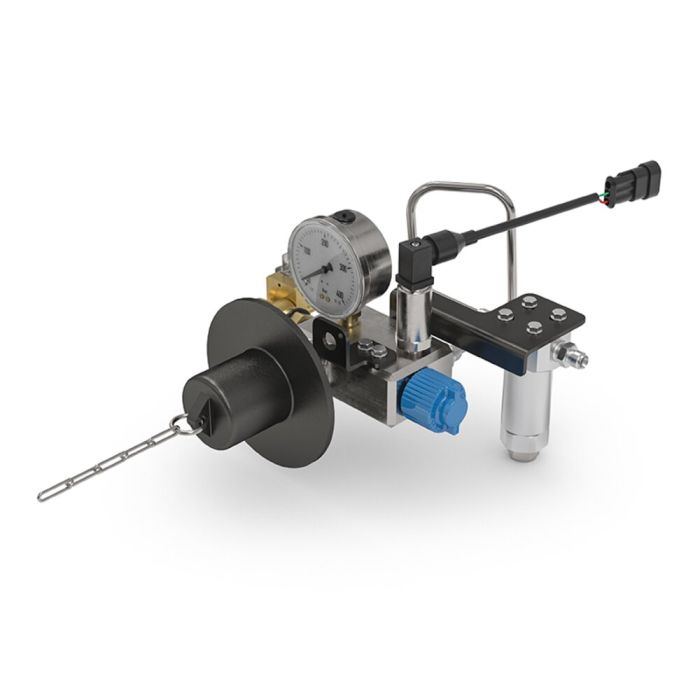

Manifold TMF20-S1 CNG Filling unit
For installation in CNG systems and vehicles
Código
C1-174629
0,00 €
TMF20 CNG manifolds are complete filling units for installation in CNG systems and vehicles. They are equipped with various high-pressure components and, depending on the version, consist of a manifold block, a WEH® TN5 CNG Receptacle, a NZS connection, a high-pressure gauge, a manual shut-off valve, a micro switch for starter cut-off, an automatic shut-off valve, a WEH® TSF2 CNG Coalescencing filter, an optional pressure sensor and fittings.
| Technical Nominal Size | 4 mm |
|---|---|
| Presión de trabajo PS máx. Admisible | 260 bar |
| Rango de temperature | -40 °C up to +85 °C |
| Material | Aluminum |
| Material de sellado | Natural gas resistant |
| Working Pressure WP | 20 MPa |
| Conformidad / Pruebas / Autorización | TMF20 CNG is tested acc. to (depending on design): - ISO-15500-2:2016 - ISO-15500-3:2012+A1:2016 - ISO-15500-4:2012+A1:2016 - ISO-15500-6:2012+A1:2016 - ISO-15500-13:2012+A1:2 |
| Serie de productos | TMF20-S1 |
- Cost-effective
- Easy installation
- Low weight
- Manual and automatic system versions
- Sealing-friendly design
- Tailor-made according to customers‘ specifications
Installation in CNG systems and vehicles, for refueling of buses and trucks with fueling nozzles acc. to NGV1 standard (P30HD) and ISO 14469 (C200) or fueling nozzles acc. to NZS standard
