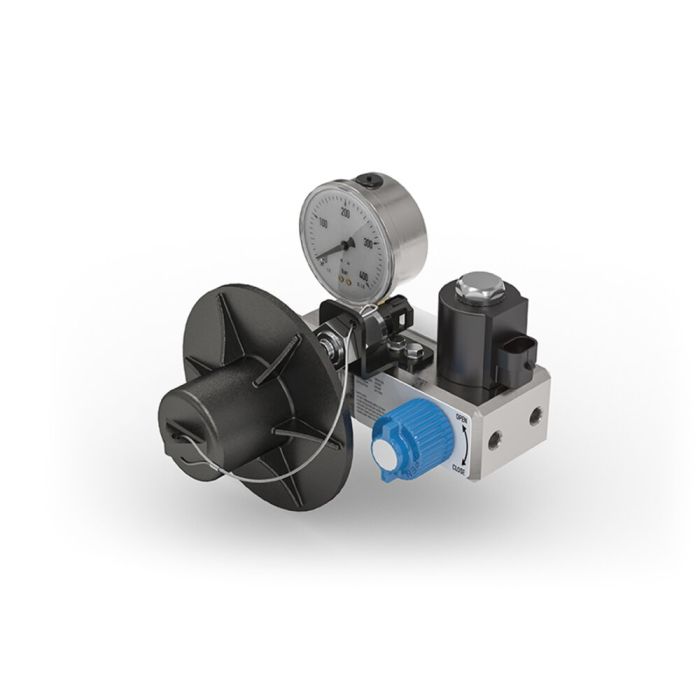

Manifold TMF20-S1 CNG Filling unit
For installation in CNG systems and vehicles
Código
C1-174628
0,00 €
TMF20 CNG manifolds are complete filling units for installation in CNG systems and vehicles. They are equipped with various high-pressure components and, depending on the version, consist of a manifold block, a WEH® TN5 CNG Receptacle, a NZS connection, a high-pressure gauge, a manual shut-off valve, a micro switch for starter cut-off, an automatic shut-off valve, a WEH® TSF2 CNG Coalescencing filter, an optional pressure sensor and fittings.
| Temperature Range | -40 °C hasta +85 °C |
|---|---|
| Material | Aluminio |
| Sealing Material | Compatible con el gas natural |
| Working Pressure WP | 20 MPa |
| Conformidad / Pruebas / Autorización | TMF20 CNG is tested acc. to (depending on design): - ISO-15500-2:2016 - ISO-15500-3:2012+A1:2016 - ISO-15500-4:2012+A1:2016 - ISO-15500-6:2012+A1:2016 - ISO-15500-13:2012+A1:2 |
| Product Series | TMF20-S1 |
- Cost-effective
- Fácil montaje
- Low weight
- Manual and automatic system versions
- Diseño respetuoso con la junta
- Soluciones a medida
Installation in CNG systems and vehicles, for refueling of buses and trucks with fueling nozzles acc. to NGV1 standard (P30HD) and ISO 14469 (C200)
