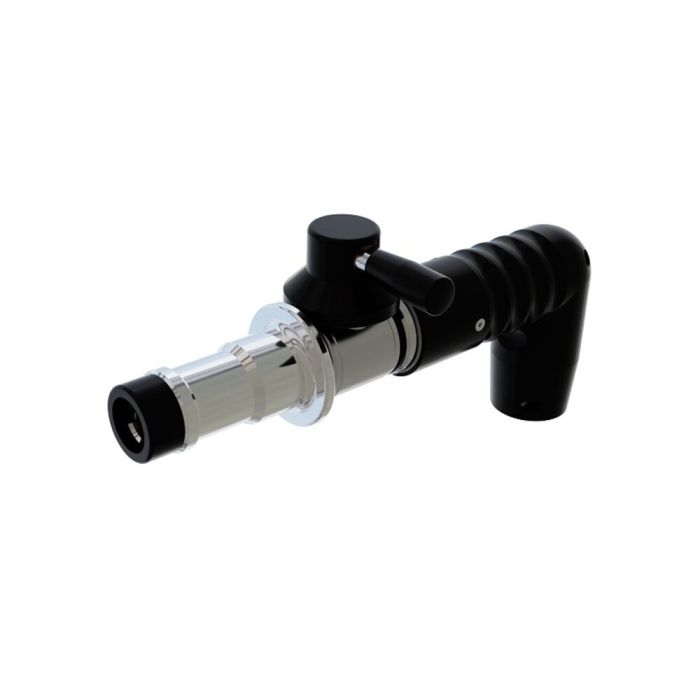

WEH® Fueling Nozzle TK16 CNG
With 90° grip sleeve
Part no.
C1-192688
€0.00
TK16 CNG, the world’s most popular NGV1 fueling nozzle.
Type TK16 CNG is very light in weight and therefore easy to operate. The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The compact actuation lever needs less effort to actuate the nozzle.
Safety
The TK16 CNG offers optimum safety to the operator.
The fueling nozzle remains connected to the receptacle until the gas between inlet valve and receptacle is depressurized.
| Technical Nominal Size | 8 mm |
|---|---|
| Nominal Pressure PN | 200 bar (3,000 psi) |
| Max. allowable operating pressure PS | 300 bar |
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | UNF 9/16"-18 male thread, SAE J514, 37° cone |
| Material | Corrosion resistant |
| Sealing Material | Natural gas resistant |
| Design | With plastic thermal protection, gas recirculation and hand grip with magnet |
| Coding | P30HD acc. to ANSI NGV1 / C200 acc. to ISO 14469 PN = 200 bar (3,000 psi) |
| Weight | Approx. 2 kg (4.41 lbs.) |
| Conformity / Tests / Approvals | The products comply with ANSI NGV1-2006 |
- Easy replacement of filter element
- Color coded impact protection (200 bar / 3000 psi black , 250 bar / 3600 psi yellow)
- Easy operation
- High-grade materials
- WEH® Jaw Locking Mechanism
- Super light -> only 2000 grams
- Extremely high flow rate
- Angled grip sleeve for ergonomic operation and optimized hose routing
- Plastic thermal protection
- Color coded sliding sleeve (200 bar / 3000 psi black , 250 bar / 3600 psi yellow)
- Recirculation of the vented gas
- WEH® EASY-TURN 360° swivel joint for actuation lever
- Compatible with receptacles acc. to NGV1 standard and ISO 14469
Fueling nozzle for CNG fast filling of cars at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
