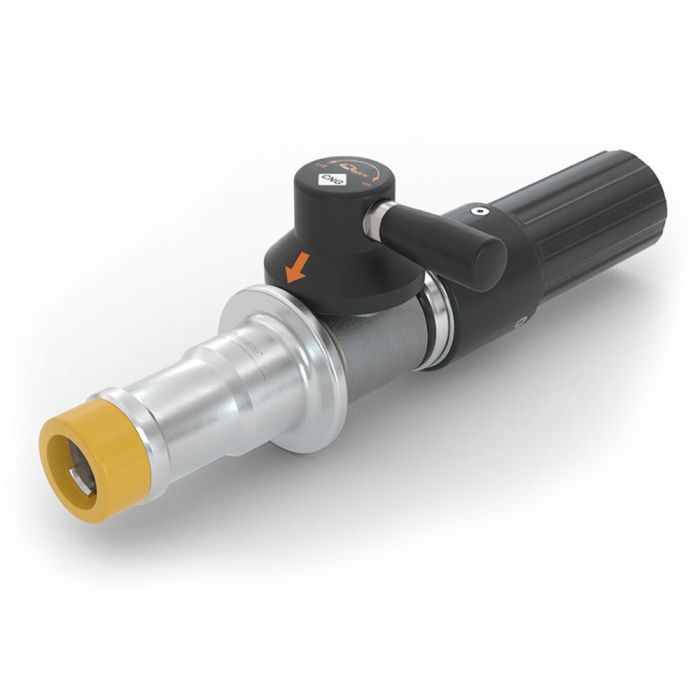

WEH® Fueling Nozzle TK16 CNG
For CNG refueling of cars at self-service fueling stations
Part no.
C1-101084-X01
€0.00
TK16 CNG, the world’s most popular NGV1 fueling nozzle.
Type TK16 CNG is very light in weight and therefore easy to operate. The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The compact actuation lever needs less effort to actuate the nozzle.
Safety
The TK16 CNG offers optimum safety to the operator.
The fueling nozzle remains connected to the receptacle until the gas between inlet valve and receptacle is depressurized.
| Technical Nominal Size | 8 mm |
|---|---|
| Nominal Pressure PN | P36 acc. to ANSI NGV1 / B250 acc. to ISO 14469 PN = 250 bar (3,600 psi) |
| Max. allowable operating pressure PS | 350 bar |
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | UNF 9/16"-18 male thread, SAE J514, 37° cone |
| Material | Corrosion resistant |
| Sealing Material | Natural gas resistant |
| Design | With plastic thermal protection and gas recirculation |
| Weight | Approx. 1.75 kg (3.86 lbs.) |
| Conformity / Tests / Approvals | The products comply with ANSI NGV1-2006 |
- Coding for pressure range / gas type
- Color coded impact protection (250 bar / 3600 psi yellow)
- Compatible with receptacles acc. to NGV1 standard and ISO 14469
- Easy operation
- High flow rate -> short filling times
- High-grade materials
- Plastic thermal protection
- Recirculation of the vented gas
- Super light -> only 1,750 grams
- WEH® EASY-TURN 360° swivel joint for actuation lever
- WEH® Jaw Locking Mechanism
Fueling nozzle for CNG fast filling of cars at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
