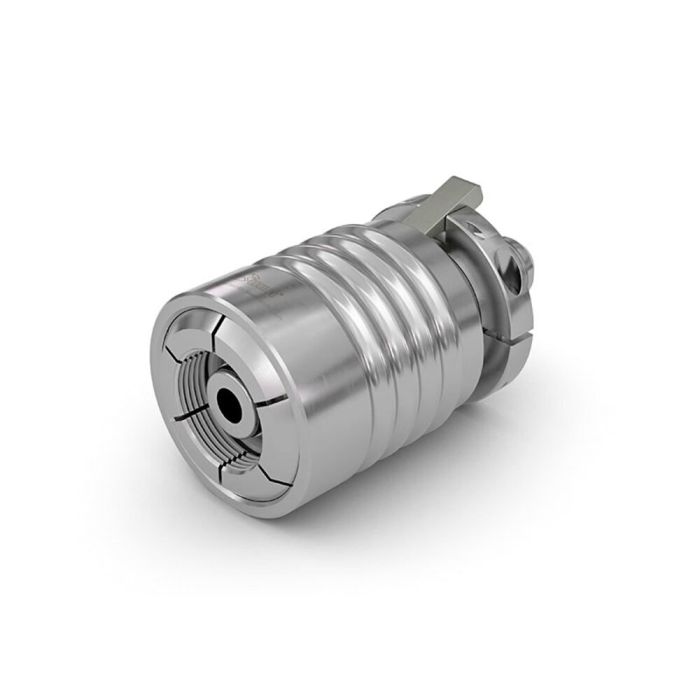

WEH® Connector TW850-S60 H2
The WEH® TW850-S50 H2 Quick Connector reduces testing times and improves productivity on the test bench.
WEH® Jaw technology ensures quick, tool-free connection and disconnection and offers a cost-effective alternative to H2
fueling nozzles when only a leak test is required and no refuelling is needed.
The S50 variant was developed specifi cally for connection to hydrogen receptacles and has been tried and tested in
practice for many years, including in use at WEH for end-of-line testing.
The front connection profi le is designed for H70-coded receptacles; further variants for H35 and H35MF are also available.
The connection profi le for the media inlet (B1) can be designed to your specifi cations on request
| Technical Nominal Size | 10 mm |
|---|---|
| Max. allowable operating pressure PS | PS = 450 bar |
| Temperature Range | -40 °C to +65 °C |
| Medium | Hydrogen |
| Connection A | M36x2.0 - LH male thread |
| Media Inlet | UNF 7/8“-14 male thread |
| Leak Rate | 1 x 10-3 mbar x l/s, measured with 100 |
| Actuation | Manual actuation via sliding sleeve |
| Material | Corrosion resistant |
| Sealing Material | NBR |
- Compatibility: Suitable for typical tube connections on H2 trailers
- Grip sleeve lock: Prevents unintentional loosening of connector
- H2 compatibility: Optimized for hydrogen applications with high operating pressures
- Quick connector: Laborious screwing on is not necessary - Connection and release in less than one second
- Robust design: Durable and reliable even under the most demanding conditions
- High flow values: Continuous technical nominal width of 10 mm for maximum flow rate
Filling hydrogen containers, e.g. H2 trailers for fueling station supply, with a max. operating pressure of up to 530 bar.
