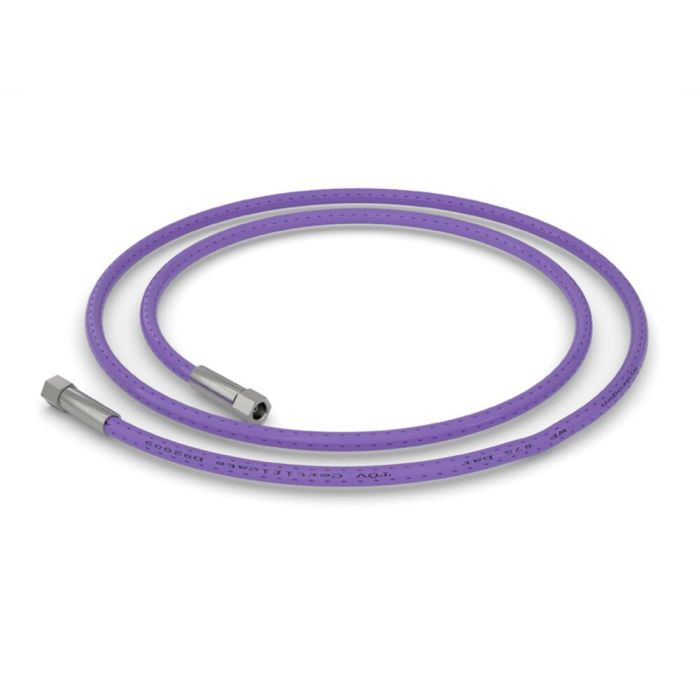

Pressure hose H2 70 MPa
Our high-pressure hose is specifically designed for use in hydrogen refueling stations, tailored to withstand the pressures and temperatures encountered in such environments.
With our hoses, we cover all common connection geometries required for linking refueling stations and trailers.
The hose is available in various lengths and is suitable for both stationary and mobile systems.
It meets the highest safety standards, is pressure-tested, hydrogen-resistant, and durable—even under demanding environmental conditions.
Other hose lengths are available on request.
| Technical Nominal Size | 7.5 mm |
|---|---|
| Max. allowable operating pressure PS | 962.5 bar |
| Media Inlet | UNF 3/4"-16 female thread |
The high-pressure hose is used as a connecting element between a hydrogen refueling station and a trailer. It ensures the safe and efficient transfer of hydrogen during the refueling process. The hose is particularly well-suited for customers developing new trailer refueling systems or upgrading existing ones. Thanks to its direct compatibility with the quick connector, no additional adapter is required. This significantly reduces installation effort and ensures smooth and safe operation.
