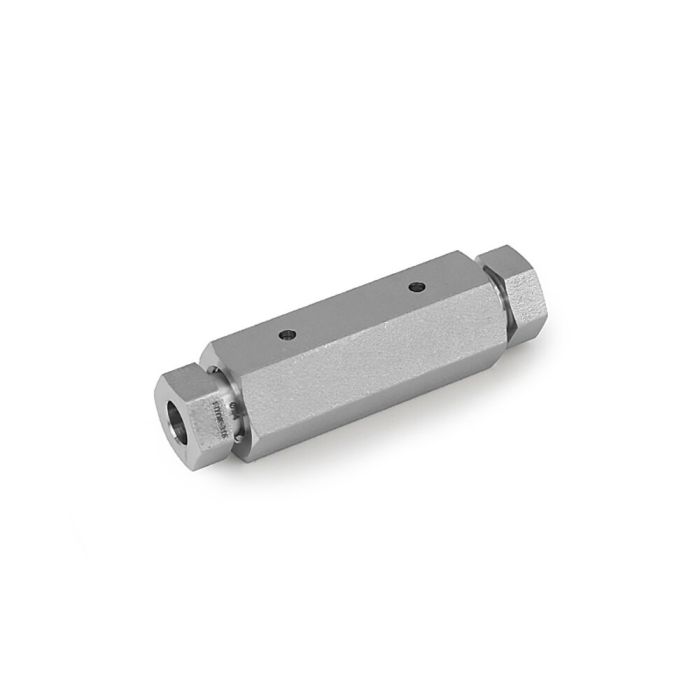

WEH® Fitting with straight connection (Medium pressure)
WEH® fittings ensure the leak-free connection of pipe components. The cone and thread fittings are a simple and reliable fitting system.
All fittings are supplied complete with the appropriate fittings.
WEH® high pressure fittings are metal-to-metal sealed and can be screwed on again several times.
They are suitable for pressure ranges up to 1,379 bar / 20,000 psi.
Ready for use for different media of fluid group 2 (according to DGR 2014/68/EU), such as air, water and hydraulic oil.
Suitable for pipes in the standard market sizes 1/4“, 3/8”, 9/16”, 3/4“ and 1“.
Our fittings are available with both metric and imperial threads.
WEH® fittings up to 1,379 bar / 20,000 psi are sealed with a 59° external cone at the pipe end and a 60° internal cone in the fitting (medium pressure-fitting 60° Cone&Thread).
WEH offers all the necessary tools for applying and finishing the outer cone on the pipe ends and repairing the inner cones.
Straight fitting with two identical ports, available with all common connection sizes.
Pressure rings and pressure screws are pre-assembled on all connections.
The connection geometry is an medium pressure fitting 60° cone & thread.
Special designs with different connection threads or for deviating pressure ranges are available on request. Special materials for challenging media or conditions of use are available on request.
| Technical Nominal Size | 2.8 mm |
|---|---|
| Max. allowable operating pressure PS | PS = 1,379 bar / 20,000 psi |
| Pressure Range (PS) | 1,379 bar / 20,000 psi |
| Material | High-strength stainless steel |
| Connection geometry | Medium pressure fitting 60° Cone & Thread |
| Conformity / Tests / Approvals | Pressure equipment type: Pipe-like, pressure-retaining equipment in accordance with Article 2 No. 5 of the Pressure Equipment Directive Classification: Article 4, paragraph 3 |
- Easy conversion/replacement thanks to identical size of cross; T and angle piece
- Diagonally arranged fixing holes protect the screw connections from twisting
- Optimized flow rate; as nominal width of fittings is higher than that of tubes
- Special sealing contour for leak-free connection
- Pressure-resistant up to 1,379 bar / 20,000 psi
WEH® high pressure fittings are designed for applications with both liquid and gaseous media in fluid group 2 DGR.
Typical applications include hydraulic systems in hydroforming and water jet systems, high-pressure test benches, and high-pressure applications in the chemical and food processing industries.
Special versions are available for hydrogen applications. Please feel free to inquire!
