Tube Receptacle (Medium Pressure)
For medium pressure high pressure fittings
Part no.
tube-receptacle-mp
€0.00

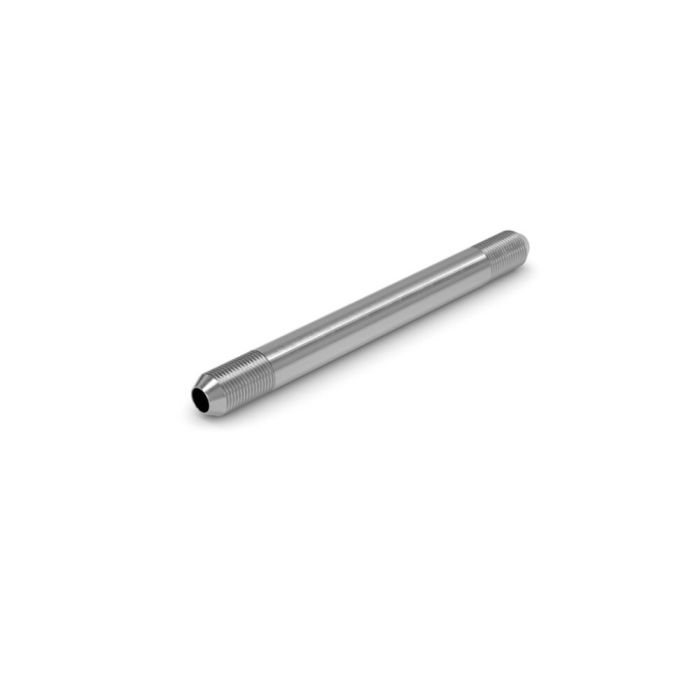

Medium pressure tube receptacle made of seamless cold-drawn stainless steel.
Both tube ends are already provided with an outer cone and thread for the screw connection.
The connection geometry is an medium pressure fitting 60° cone & thread.
Technical Data (see data sheet):
- External tube diameter (Zoll): 1/4" - 1"
- Technical nominal size (TNW): 2.8 mm - 14.3 mm
- Pressure PS: 1,379 bar / 20,000 psi
- Connection types outer cone: 59° outer cone
