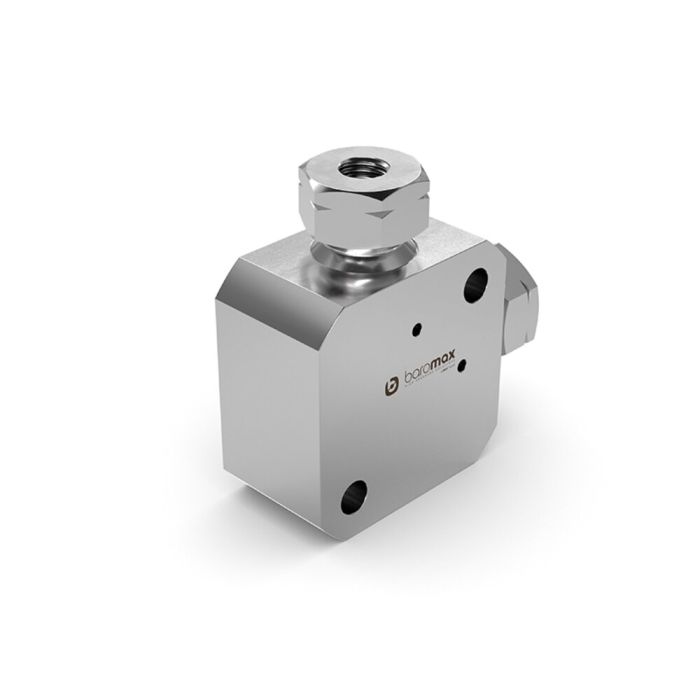

baromax fitting with elbow piece
The baromax fittings ensure the leak-free connection of pipe components. The cone and thread fittings are a simple and
reliable fitting system. All fittings are supplied complete with the appropriate fittings.
The baromax high-pressure fittings are metal-to-metal sealed and can be screwed on again several times.
They are suitable for pressure ranges up to 10,000 bar.
Ready for use for different media of fluid group 2 (according to DGR 2014/68/EU), such as air, water and hydraulic oil. Suitable for pipes in the standard market sizes 1/4“, 3/8” and 9/16”. Our fittings are available with both metric and imperial threads.
For pressure ratings 2,500 bar and 4,200 bar, the screw connection is made with a 58° outer cone at the pipe end into a 60° inner cone at the fitting.
For pressure ranges of 7,000 bar and 10,000 bar, we offer special high-density fittings with a 120° inner cone, the pipe end is then fitted with a 116° outer cone.
To attach the outer cone on the tube ends and for reworking or repair of the inner cone, WEH offers all the necessary tools.
| Technical Nominal Size | 3.3 mm |
|---|---|
| Pressure Range (PS) | 4,200 bar |
| Temperature Range | +5 °C up to +50 °C |
| Medium | Air / Water / Hydraulic oil (only oils according to fluid group 2 DGR) |
| Material | High-strength stainless steel |
| Conformity / Tests / Approvals | Pressure equipment type: Pipe-like, pressure-retaining equipment in accordance with Article 2, No. 5 of the Pressure Equipment Directive Classification: Article 4, paragraph 3 |
- Special sealing contour for leak-free connection
- Easy conversion/replacement thanks to identical size of cross; T and angle piece
- Optimized flow rate; as nominal width of fittings is higher than that of tubes
- With two diagonally arranged mounting bores
- Pressure-resistant up to 10000 bar
The baromax fittings are designed as a standard for hydraulic high pressure systems. Typical applications include hydraulic systems in hydroforming and water jet plants, high-pressure test stands, isostatic pressure for manufacturing ceramics as well as high-pressure applications in chemistry and food processing.
