Tube Receptacle (High Pressure)

For high pressure fittings

Part no.

tube-receptacle

€0.00

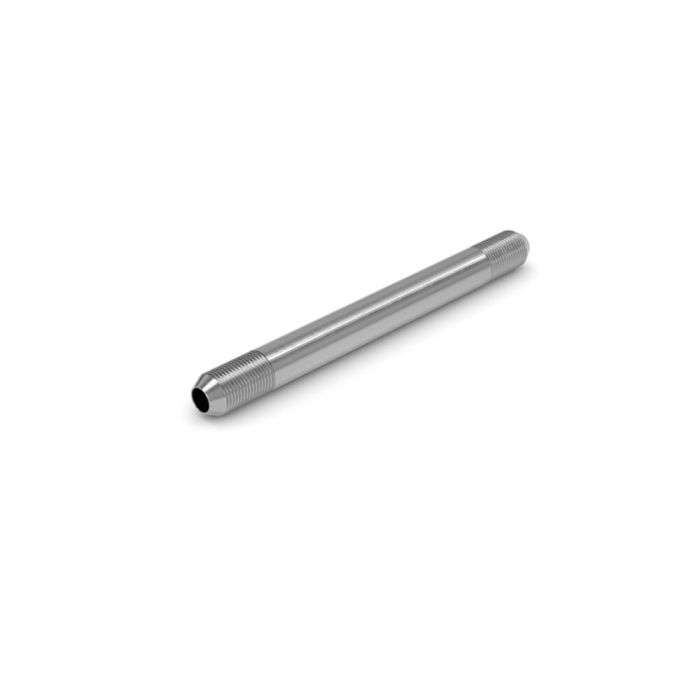

The high-pressure tube receptacle made of seamless cold-drawn stainless steel.
Both tube ends are already provided with an outer cone and thread for the screw connection.
The connection geometry is an high pressure fitting 60° cone & thread.

CAD

Download CAD Files

Downloads

Description	Document type	Language	File type	File size

Part no.	Technical Nominal Size	Max. allowable operating pressure PS
C1-189146	2.1 mm	4,200 bar / 60,916 psi
C1-189157	2.1 mm	4,200 bar / 60,916 psi
C1-189159	2.1 mm	4,200 bar / 60,916 psi
C1-189175	2.1 mm	4,200 bar / 60,916 psi
C1-189186	3.1 mm	4,200 bar / 60,916 psi
C1-189187	3.1 mm	4,200 bar / 60,916 psi
C1-189188	3.1 mm	4,200 bar / 60,916 psi
C1-189189	3.1 mm	4,200 bar / 60,916 psi
C1-189191	4.7 mm	4,200 bar / 60,916 psi
C1-189193	4.7 mm	4,200 bar / 60,916 psi
C1-189194	4.7 mm	4,200 bar / 60,916 psi
C1-189195	4.7 mm	4,200 bar / 60,916 psi
C1-189196	8 mm	2,500 bar / 36,259 psi
