WEH® Adapter TW850-S60 H2

A major challenge is ensuring a reliable supply to hydrogen filling stations when hydrogen cannot be produced on-site. In addition to the expansion of an H2 pipeline network, trailers are needed for local distribution to transport hydrogen from central filling stations to filling stations. The pipes are currently connected to these trailers mainly using pipe fittings, a process that is time-consuming and requires special training.

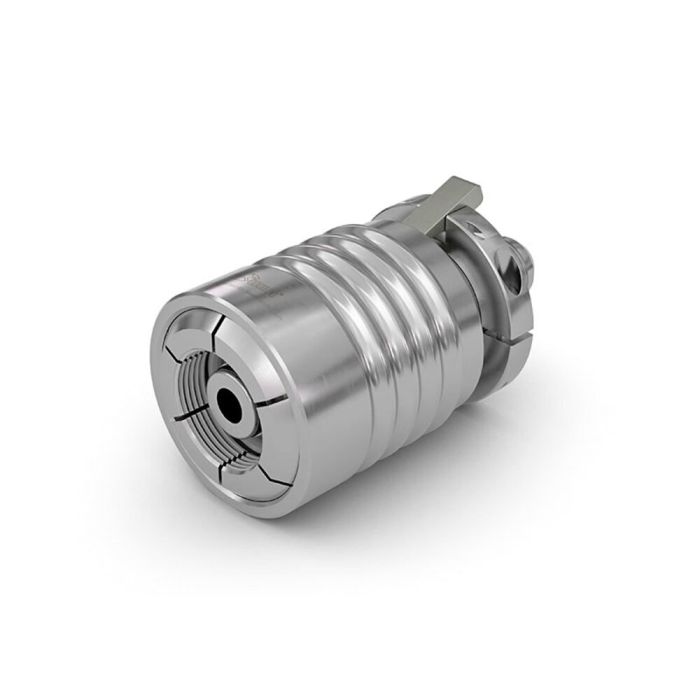

The WEH® TW850-S60 H2 530 bar adapter is the ideal solution for the safe, fast and efficient filling of hydrogen containers, such as H2 trailers for refuelling stations, at a maximum operating pressure of up to 530 bar.

Thanks to its innovative collet technology and a consistent nominal bore of 10 mm, the quick-connect adapter enables maximum flow rates and significantly reduces filling time. Its ease of use and the elimination of complex pipe fittings make the TW850-S60 H2 530 bar an indispensable tool for filling H2 hydrogen trailers and supply vehicles.

Thanks to the integrated safety lever, accidental release of the adapter is reliably prevented, thereby maximising safety during the filling process. With its H2 compatibility and robust construction, the TW850-S60 H2 530 bar sets new standards in hydrogen logistics and supports the growing demand for efficient solutions for the energy transition.
