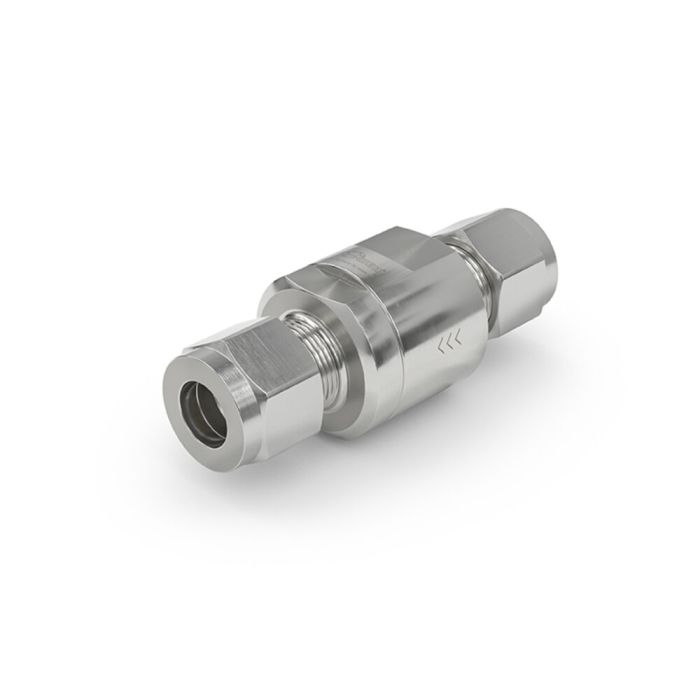

WEH® Valvola di ritegno TVR1 H₂
Per montaggio nelle autovetture (EC79)
Codice
C1-18485/4
0,00 €
With the TVR1 H2 WEH offers a high performance check valve for use with hydrogen.
The WEH® TVR1 H2 check valves provide a reliable function wherever hydrogen should only flow in one direction within a pipe system and must be prevented from a return flow.
The check valve system is designed to minimize the effect of dirt particles on the sealing components within the unit. The WEH® TVR1 H2 Check Valve is constructed of corrosion-resistant stainless steel achieving a very durable unit due to its robust internal structure.
| Technical Nominal Size | 8 mm |
|---|---|
| Pressione nominale (PN) | 35 MPa |
| Pressione di esercizio PS max ammessa | PS (MAWP) |
| Campo di pressione | PN = 35 MPa | PS = 45 MPa |
| Campo di temperatura | -40 °C up to +85 °C |
| Ingresso B1 | Tube Ø 3/8", double ferrule fitting |
| Materiali | Corrosion resistant stainless steel (inner components partially made of brass: C1-18485/4) |
| Materiali delle guarnizioni | Hydrogen resistant |
| Esecuzione | Incl. fittings (only for check valves with tube fitting) |
| Approval | e1 00 0005 (Regulation (EC) No. 79/2009) |
- Corrosion resistant stainless steel
- High leak tightness
- Low-noise opening and closing
- Robust construction
Check valve for cars, also suitable for installation in hydrogen fueling stations.
The WEH® TVR1 H2 product family is offered as a return flow prevention acc. to DIN EN 736-1 for installation in H2 systems and pipelines.
