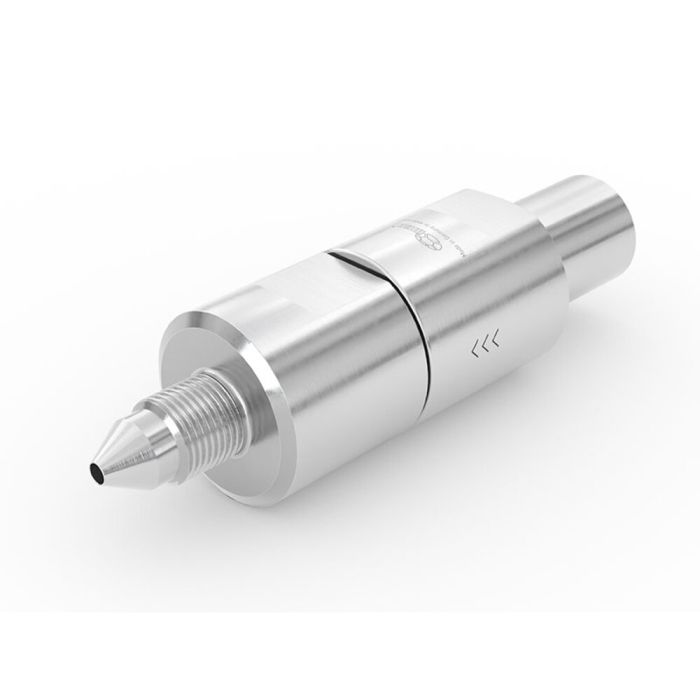

WEH® Valvola di ritegno TVR1 H₂ 70 MPa
With internal / external thread UNF 7/16"-20 and filter (20 micron)
Codice
C1-87743
0,00 €
With the TVR1 H2 70 MPa WEH offers a high performance check valve for use with hydrogen cars or fueling stations of the latest generation.
The WEH® TVR1 H2 70 MPa check valves provide a reliable function wherever hydrogen should only flow in one direction within a pipe system and must be prevented from a return flow.
The WEH® TVR1 H2 70 MPa Check Valve is constructed of corrosion-resistant stainless steel achieving a very durable unit due to its robust internal structure.
| Diametro nominale (DN) | 2.5 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 87.5 MPa according to ISO 17268 (PS = 875 bar) |
| Pressione nominale (PN) | 700 bar |
| Campo di pressione | PN = 70 MPa | PS = 87,5 MPa |
| Campo di temperatura | -40 °C fino a +85 °C |
| Ingresso B1 | UNF 7/16"-20 female thread, 60° cone, MP fitting |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | Con filtro impurità integrato (20 μm) |
| Approval | e1 00 0010 (Regulation (EC) No. 79/2009) |
- Acciaio inossidabile
- Elevata tenuta
- Apertura e chiusura silenziose
- Costruzione compatta
Check valve for cars, also suitable for installation in hydrogen fueling stations.
The WEH® TVR1 H2 70 MPa product family is offered as a return flow prevention acc. to DIN EN 736-1 for installation in H2 systems and pipelines.
