WEH® Receptacle TN1 H₂ Medium-Flow - Famiglia di prodotti

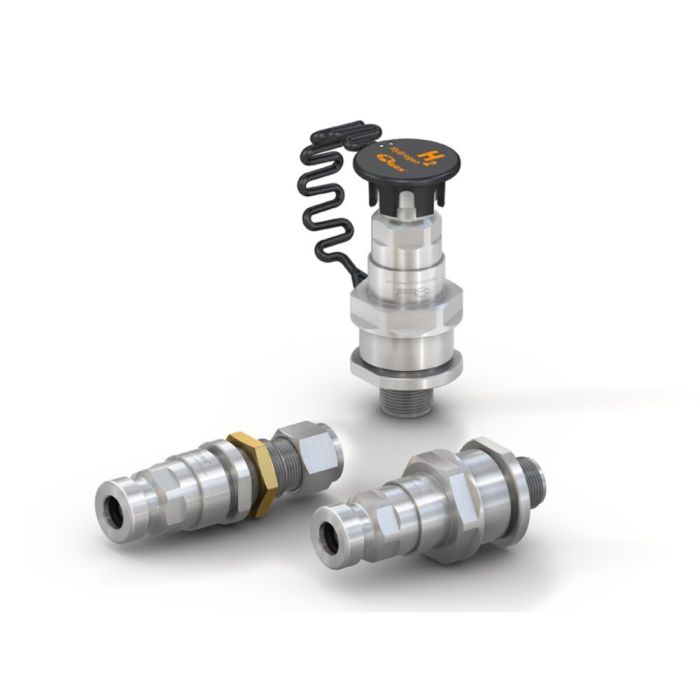

The WEH® TN1 H₂ Receptacle with double ferrule fitting was developed to be used with the WEH® TK16 H₂ Medium-Flow Fuelling Nozzle, enabling to refuel buses and trucks from now on at cars fuelling stations.
Refuelling with a higher speed occurs either with a TK16 H₂ Fuelling Nozzle or with a TK16 H₂ High-Flow Fuelling Nozzle. Due to the internal aerodynamic design the receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling. The receptacle is a very durable unit, minimizing maintenance and down-time.
The WEH® TN1 H₂ High-Flow Receptacle has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle. The TN1 H₂ High-Flow is also equipped with a coding for pressure range and gas type.
| Pressione nominale (PN) | 35 MPa |
|---|---|
| Pressione di esercizio PS max ammessa | PS (MAWP) |
| Campo di temperatura | -40 °C up to +85 °C |
| Materiali | Corrosion resistant |
| Materiali delle guarnizioni | Hydrogen resistant |
| Esecuzione | With protection cap, integrated particle filter (40 μm), integrated check valve and fittings (only for receptacles with tube fitting) |
| Coding | Depending on design |
| Approval | e1 00 0003 (Regulation (EC) No. 79/2009) |
- Coding for pressure range / gas type
- Integrated high-flow check valve
- Integrated self-cleaning particle filter (40 μm)
- Low-noise refueling
- Sealing-friendly design
High-Flow receptacle with double ferrule fitting for refueling of buses and trucks with hydrogen.
