WEH® Receptacle TN1 H₂ High-Flow
The WEH® TN1 H₂ Receptacle with double ferrule fitting was developed to be used with the WEH® TK16 H₂ High-Flow Fuelling Nozzle, enabling to refuel buses and trucks from now on at cars fuelling stations.
Refuelling with a higher speed occurs either with a TK16 H₂ Fuelling Nozzle or with a TK16 H₂ High-Flow Fuelling Nozzle. Due to the internal aerodynamic design the receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling. The receptacle is a very durable unit, minimizing maintenance and down-time.
The WEH® TN1 H₂ High-Flow Receptacle has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle. The TN1 H₂ High-Flow is also equipped with a coding for pressure range and gas type.
| Diametro nominale (DN) | Depending on design |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Pressione nominale (PN) | 35 MPa |
| Campo di pressione | PN = 35 MPa | PS = 45 MPa |
| Campo di temperatura | -40 °C fino a +85 °C |
| Materiali | Antiruggine |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | With protection cap, integrated particle filter (40 μm), integrated check valve and fittings (only for receptacles with tube fitting) |
| Approval | e1 00 0003 (Regulation (EC) No. 79/2009) |
- Codifica per stadio di pressione / tipo di gas
- Valvola di ritegno integrata con flusso elevato
- Filtro impurità integrato autopulente (40 μm)
- Rifornimento silenzioso
- Tipo costruttivo salvaguarnizioni

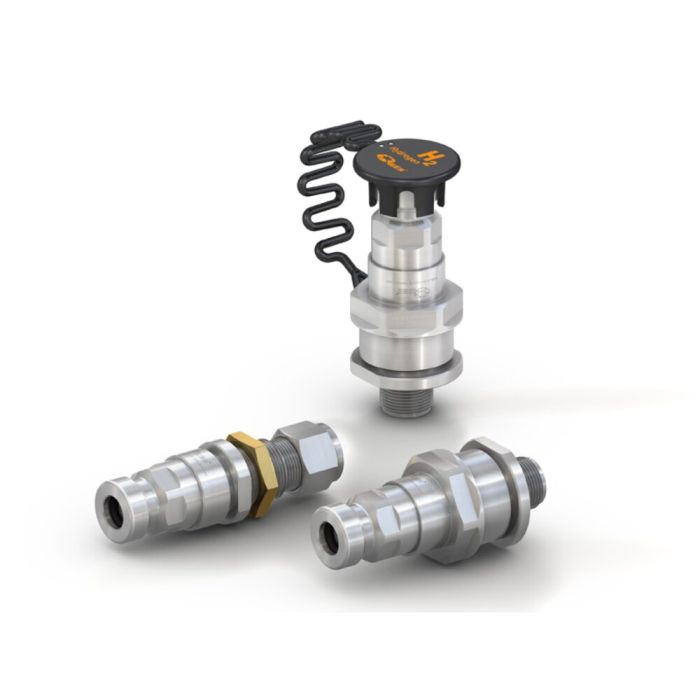

High-Flow receptacle with double ferrule fitting for refueling of buses and trucks with hydrogen.
