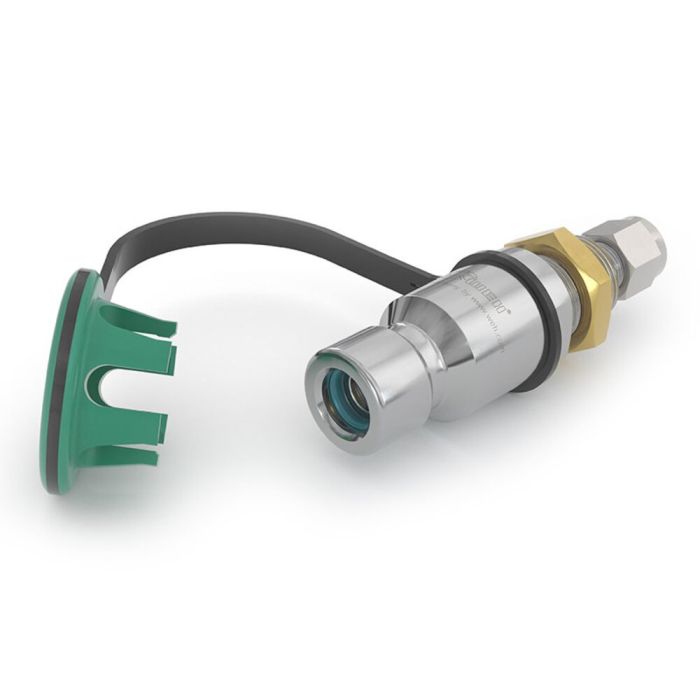

WEH® Valvola di carica TN1 CNG
The WEH® TN1 CNG receptacle is designed specifically for car refuelling. Due to the internal aerodynamic design the TN1 CNG receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling.
The receptacle is a very durable unit, minimizing maintenance and down-time. The TN1 CNG also has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle.
The TN1 CNG receptacle is equipped with a coding for pressure range and gas type.
Enhanced safety by integrating a dirt particle filter
Using an integrated particle filter avoids dirt ingress and therefore leakage from the receptacle which gives enhanced safety and reliability - essential features for the volatile nature of CNG products.
| Nominal bore (DN) | 6 mm |
|---|---|
| Pressure Range | PN = 250 bar | PS = 315 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Con cappuccio di protezione parapolvere, filtro impurità integrato (40 μm) e raccordi (per collegamento a vite) |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
| Approval | ECE R110 |
- Codifica per stadio di pressione / tipo di gas
- Compatibile con le mandrini di rifornimento NGV1 e ISO 14469
- Valvola di ritegno integrata con flusso elevato
- Filtro impurità integrato autopulente (40 μm)
- Rifornimento silenzioso
- Tipo costruttivo salvaguarnizioni
Receptacle for CNG refueling / filling of cars and fork-lift trucks or other industrial applications, to be used with WEH® Fueling nozzles acc. to NGV1 standard and ISO 14469. Only use receptacles with ECE approval for fitment in road legal vehicles.
