WEH® Mandrino di rifornimento TK24 CNG

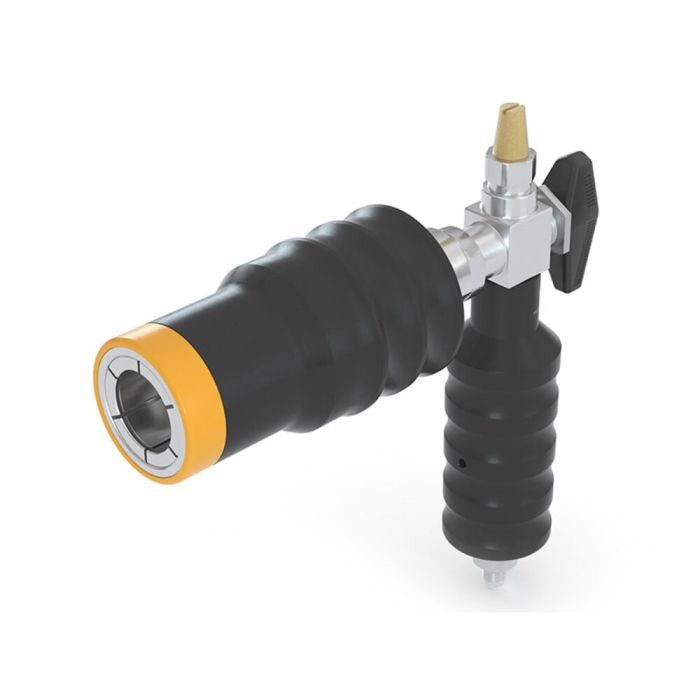

The WEH® TK24 CNG Fuelling Nozzle combines user comfort with maximum convenience.
The integrated WEH® TK22 CNG Fuelling Nozzle features ‘push-to-connect’ jaw locking system which automatically moves the grip sleeve back when making a connection. The ergonomic design of the handle enables an easy connection to the receptacle. This feature can help to prevent stresses on the high pressure hose and hose damage due to chafing on the ground.
Refuelling starts after opening the integrated ball valve. Closing the ball valve finishes refuelling and the integrated gas recirculation automatiaclly depressurizes the system. The nozzle can then be disconnected by pulling back the grip sleeve of the TK22 CNG.
The WEH® TK24 CNG is also available without gas recirculation. The extended construction of the integrated WEH® TK22 CNG fuelling nozzle helps in refuelling difficult-to-access receptacles. WEH® jaws grip symmetrically, avoiding damage to the receptacle profile which could result in leakage.
| Nominal bore (DN) | 5 mm |
|---|---|
| Pressure Range | P36HD secondo ANSI NGV1 / C250 secondo ISO 14469<br>PN = 250 bar | PS = 350 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Con rivestimento di isolamento termico in materiale sintetico, valvola a sfera integrato e sistema di recupero del gas |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
| Weight | Circa 2,7 kg (sin recupero del gas) o circa 3,4 kg (con recupero del gas) |
- Color coded impact protection (250 bar / 3600 psi yellow)
- Disegno ergonomico
- Inclinazione impugnatura 90°
- Materiali di alta qualità
- Valvola di non ritorno integrata
- Impugnatura isolato termicamente
- Azionamento Push-Pull
- Meccanismo a pinze segmentate WEH®
Fueling nozzle for CNG fast filling of buses and trucks (also for slowfill refueling) to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469. Operation only by specially trained service personnel. Not for self-service operation!
