WEH® Mandrino di rifornimento TK22 CNG

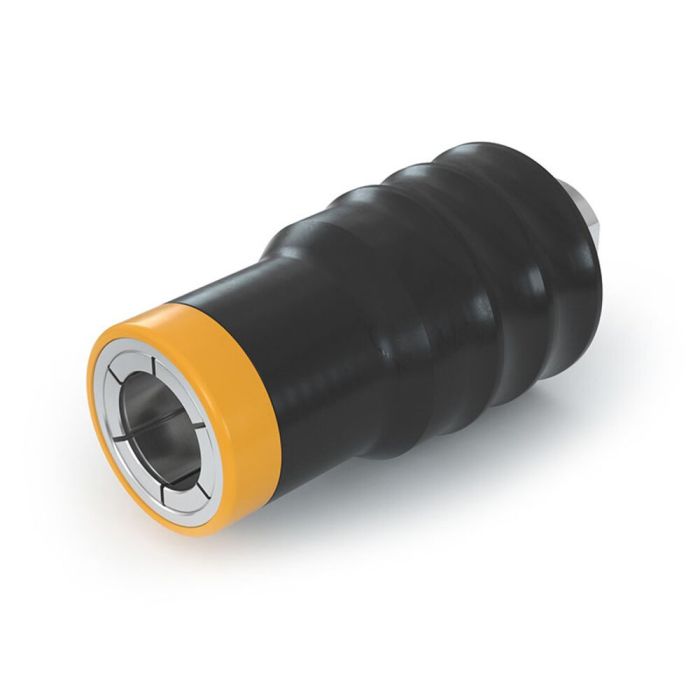

Type TK22 CNG is the WEH® Fuelling nozzle for CNG refuelling of buses and trucks. The compact design and the unique WEH® Jaw locking mechanism provide a pressure-tight connection within seconds.
The type TK22 CNG can be used wherever the system is pressurized and vented at the fuelling station.
Easy push-pull connection. The nozzle only has to be placed onto the receptacle and the clamping jaws close. Disconnection is effected by pulling back the grip sleeve.
| Technical Nominal Size | 12 mm |
|---|---|
| Pressione nominale (PN) | 250 bar |
| Pressione di esercizio PS max ammessa | 350 bar |
| Campo di temperatura | -40 °C fino a +85 °C |
| Materiali | Antiruggine |
| Materiali delle guarnizioni | Resistenti al gas metano |
| Esecuzione | Con rivestimento di isolamento termico in materiale sintetico |
| Peso | Approx. 1.8 kg (3.97 lbs.) (TK22 CNG) resp. approx. 2.2 kg (4.85 lbs.) (TK22 CNG with safety device for grip sleeve) |
- Color coded impact protection (250 bar / 3600 psi yellow)
- Costruzione compatta
- Flusso estremamente elevato
- Materiali di alta qualità
- Valvola di non ritorno integrata
- Impugnatura isolato termicamente
- Azionamento Push-Pull
- Dispositivo di sicurezza per impugnatura riequipaggiabile in qualsiasi momento
- Meccanismo a pinze segmentate WEH®
Fueling nozzle for CNG fast filling of buses and trucks to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469. Operation only by specially trained service personnel. Not for self-service operation! For self-service operation we recommend our TK22 CNG with safety device for grip sleeve.
