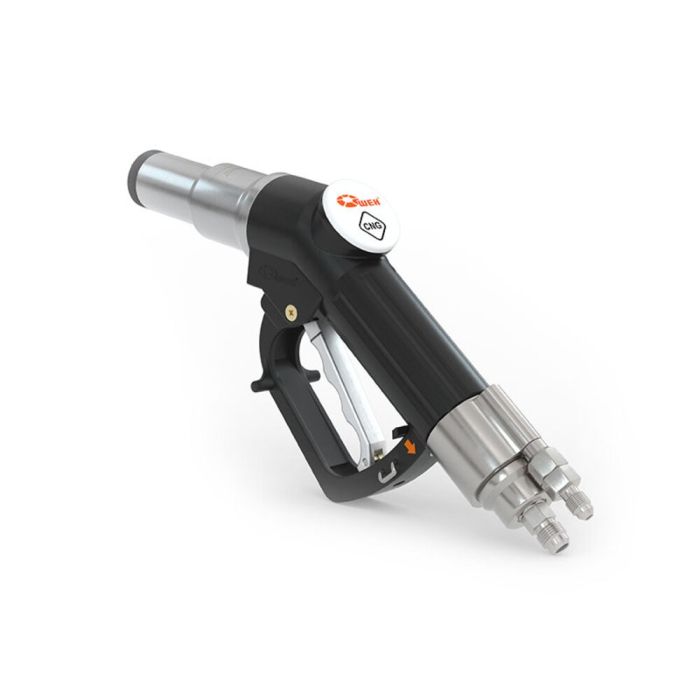

WEH® Mandrino di rifornimento TK17 CNG
Field-proven Type 1 Pistol Grip Nozzle for CNG Fast Fill
Designed for fast filling of cars and light duty vehicles in self-service, the field-proven NGV1 pistol grip nozzle TK17 CNG has convinced customers worldwide for more than ten years with its sleek look and superior ease of operation.
The single-hand nozzle with the look and feel of a petrol nozzle is rated for two different pressure ranges 200 bar (3,000 psi – P30) and 250 bar (3,600 psi – P36). A color-coded impact protection for visual identification of the pressure range and a hand grip with magnet for activation of the dispenser means a further plus in convenience and user-friendliness.
Full 360° rotation makes for easy engagement with the vehicle’s fuel receptacle and the residual gas is vented via the gas recirculation when disconnecting the nozzle.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressure Range | P30 secondo ANSI NGV1 / B200 secondo ISO 14469<br>PN = 200 bar | PS = 300 bar |
| Nominal Pressure PN | 200 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Con rivestimento di isolamento termico in materiale sintetico, sistema di recupero del gas e leva di comando con magnete |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
| Weight | Circa 2,0 kg |
| Approval | Gli apparecchi soddisfano lo standard ANSI NGV1-2006. |
- Codifica per stadio di pressione / tipo di gas
- Color coded impact protection (200 bar / 3000 psi black , 250 bar / 3600 psi yellow)
- Compatibile con le valvole di carica NGV1 e ISO 14469
- Facilità di gestione
- Impugnatura con magnete
- Valori di flusso massimi -> Tempi di riempimento ridotti
- Materiali di alta qualità
- Comando ad una mano / mancini e destrimani
- Impugnatura isolato termicamente
- Recuopero del gas residuo
- Giunto rotante WEH® EASY-TURN a 360°
- Meccanismo a pinze segmentate WEH®
Fueling nozzle for CNG fast filling of cars at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
