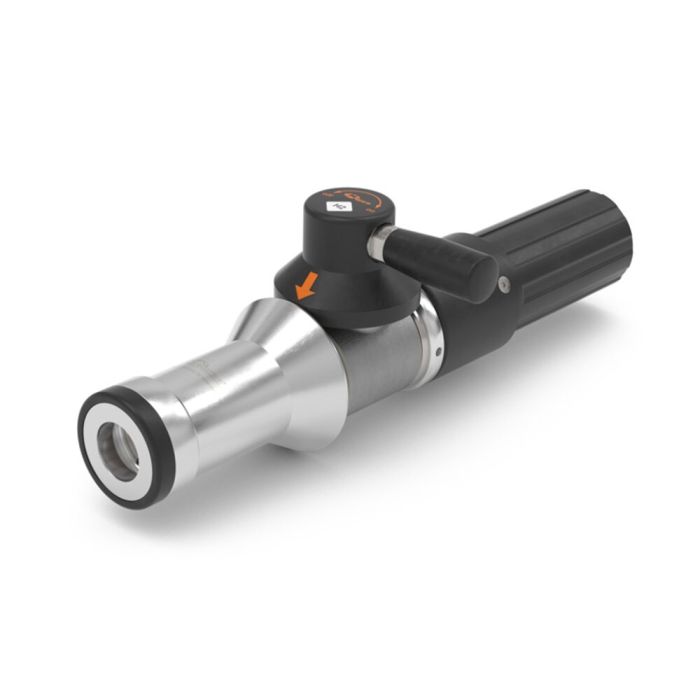

WEH® Fuelling Nozzle TK16 H₂ 250 bar
Codice
C1-45695-X4-X01
0,00 €
The WEH® TK16 H2 Fuelling Nozzle makes refuelling of fuel cell electric cars with compressed hydrogen (CGH2) even more easy for the operator.
The TK16 H2 is very light in weight and therefore easy to operate.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The actuation lever needs less effort to actuate the nozzle.
The WEH® TK16 H2 has a coding specifically for pressure range and gas type and thus the coding will not allow connection to natural gas vehicles or other pressure ranges.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 35 MPa according to ISO 17268 (PS = 350 bar) |
| Pressure Range | PN = 25 MPa <br> PN = 35 MPa |
| Nominal Pressure PN | 25 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Design | Con rivestimento di isolamento termico in materiale sintetico e sistema di recupero del gas |
| Material | Antiruggine |
| Sealing Material | Restistenti al idrogeno |
| Nozzle Type | Type A acc. to SAE J2600:2015 and previous resp. ISO 17268:2012 and previous |
| Medium Note | Suitable for pre-cooled hydrogen |
| Gas Recirculation | UNF 7/16"-20 male thread, SAE J514, 37° cone |
| Weight | Circa 1,8 kg |
| Approval | Tests acc. to SAE J2600:2002 |
- Also suitable for refueling of forklifts
- Codifica per stadio di pressione / tipo di gas
- Compatibile con profilo valvola WEH® TN1 H₂
- Facilità di gestione
- Valori di flusso massimi -> Tempi di riempimento ridotti
- Materiali di alta qualità
- Impugnatura isolato termicamente
- Recuopero del gas residuo
- Type A nozzle acc. to SAE J2600 resp. ISO 17268
- Giunto rotante WEH® EASY-TURN a 360° per leva di azionamento
- Meccanismo a pinze segmentate WEH®
Fueling nozzle for H2 fast filling of electric / hybrid cars with fuell cells (FCV) at self-service fueling stations.
