WEH® Mandrino di rifornimento TK10 CNG

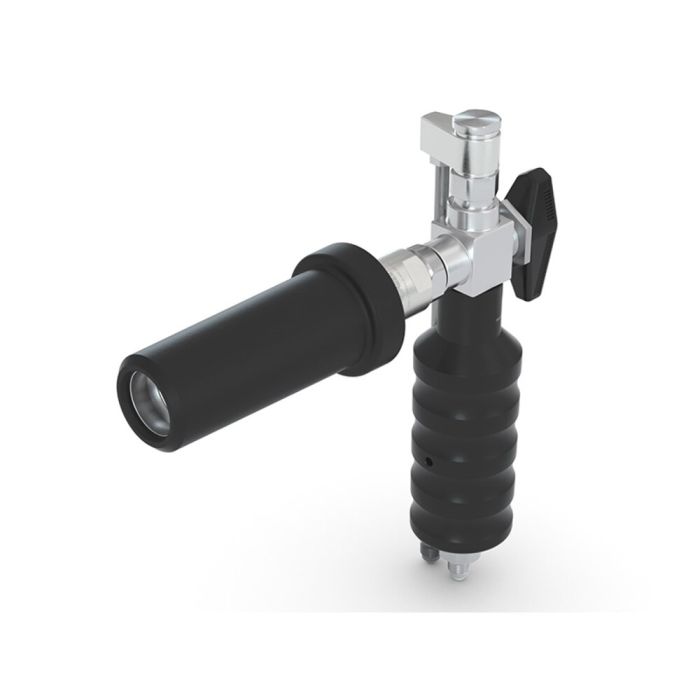

The WEH® TK10 CNG Fuelling nozzle combines user comfort with maximum convenience. The integrated WEH® TK4 CNG Fuelling nozzle features ‘push-to-connect’ jaw locking system which automatically moves the sliding sleeve back when making a connection.
The ergonomic design of the hand grip enables an easy connection to the receptacle. The hand grip is slightly angled to prevent stresses on the high pressure hose and hose damage due to chafing on the ground.
Refuelling starts after opening the ball valve. Closing the ball valve finishes refuelling and the integrated gas recirculation automatiaclly depressurizes the system. The nozzle can then be disconnected by pulling back the sliding sleeve of the TK4 CNG.
On request the TK10 CNG Fuelling nozzle is also available without gas recirculation. The grip position can either be 45° or 90°. The extended construction of the integrated TK4 CNG Fuelling nozzle helps in refuelling difficult-to-access receptacles. WEH® Jaws grip symmetrically, avoiding damage to the receptacle profile which could result in leakage.
| Nominal bore (DN) | 4 mm |
|---|---|
| Pressure Range | P30 secondo ANSI NGV1 / B200 secondo ISO 14469<br>PN = 200 bar | PS = 300 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Con rivestimento di isolamento termico in materiale sintetico e sistema di recupero del gas, inclinazione impugnatura 90° |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
| Weight | Circa 1,3 kg |
| Approval | Gli apparecchi soddisfano lo standard ANSI NGV1-2006 (si applica a TK4 CNG) |
- Compatibile con le valvole di carica NGV1 e ISO 14469
- Disegno ergonomico
- Inclinazione impugnatura 90°
- Materiali di alta qualità
- Valvola di non ritorno integrata
- Impugnatura isolato termicamente
- Agganciare senza arretrare la ghiera
Fueling nozzle for CNG fast filling of cars to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469. Operation only by specially trained service personnel. Not for self-service operation!
