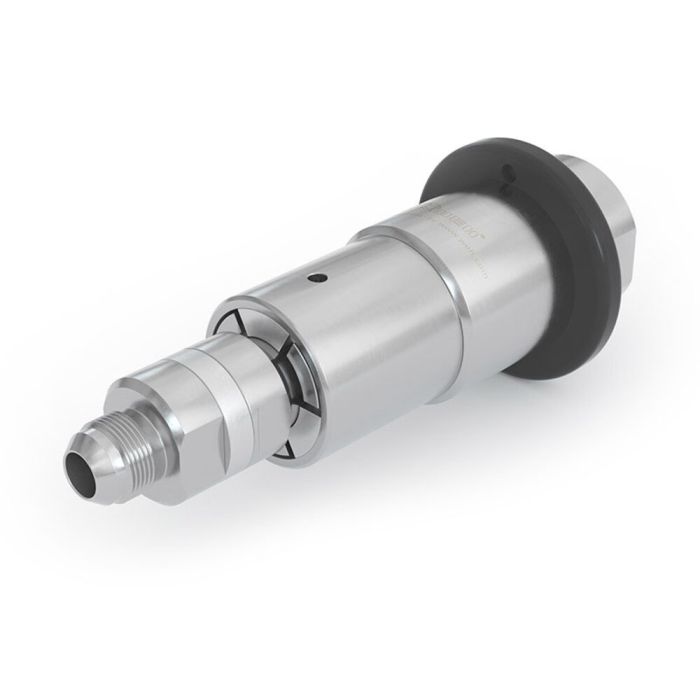

WEH® Inline Breakaway Coupling TSA6 CNG
With type TSA6 CNG, an inline breakaway coupling which is installed inbetween the filling and venting hoses, is now also available for bus and truck fuelling stations.
In the event of accidental deployment, e.g. driving a vehicle from the dispenser with the nozzle remaining in the vehicle fuel port, the coupling will separate the connections between dispenser and hoses sealing both ends. This protects largely the receptacle, the fuelling nozzle and the dispenser against damage. The detached coupling can be easily reattached and placed back in service after having been function tested.
The breakaway device consists of a coupling body, a receptacle insert and an optional gas recirculation. We recommend the installation of a type TSF5 CNG filter when using the TSA6 CNG inline breakaway coupling. The filter protects your system from dirt ingress.
We also offer complete fueling assemblies consisting of a fuelling nozzle, a hose set and a breakaway coupling (for complete fueling assemblies see respective fuelling nozzle).
| Nominal bore (DN) | 12 mm |
|---|---|
| Pressure Range | PN = 250 bar | PS = 350 bar |
| Nominal Pressure PN | 250 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Sin recupero del gas |
| Material | Acciaio inox antiruggine, alluminio |
| Sealing Material | Resistenti al gas metano |
| Break force | 222 - 660 N |
- Installazione tra i flessibili di riempimento e di recupero
- Flangia di ritegno
- Nessun attrezzo supplementare
- Riutilizzabile senza riparazione in officina
- Struttura piccola e compatta
Inline breakaway coupling for CNG bus and truck fueling stations for installation inbetween the filling and venting hoses.
