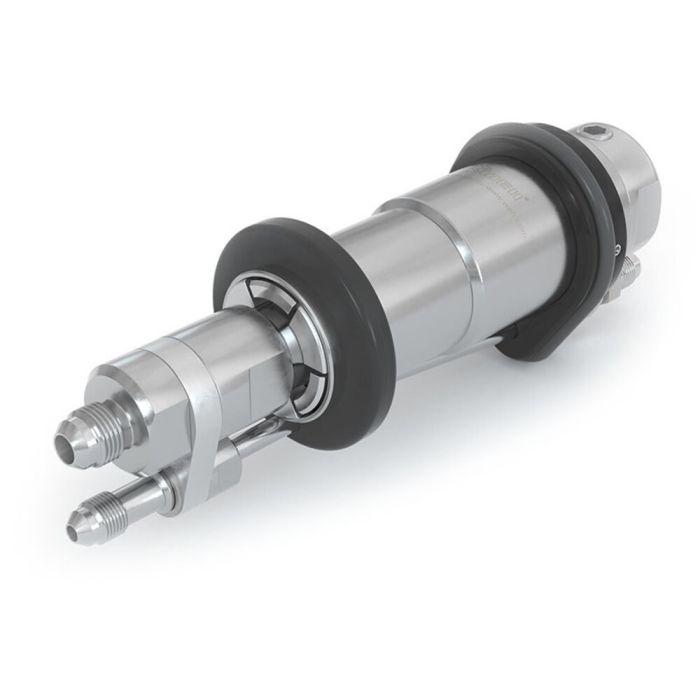

WEH® Inline Breakaway Coupling TSA2 CNG
With type TSA2 CNG, an inline breakaway coupling which is installed inbetween the filling and venting hoses, is now also available for car fuelling stations.
In the event of accidental deployment, e.g. driving a vehicle from the dispenser with the nozzle remaining in the vehicle fuel port, the coupling will separate the connections between dispenser and hoses sealing both ends. This protects largely the receptacle, the fuelling nozzle and the dispenser against damage. The detached coupling can be easily reattached and placed back in service after having been function tested.
The breakaway device consists of a coupling body, a receptacle insert and an optional gas recirculation.
We recommend the installation of a TSF5 CNG filter when using the TSA2 CNG inline breakaway coupling. The filter protects your system from dirt ingress.
We also offer complete fueling assemblies consisting of a fuelling nozzle, a hose set and a breakaway coupling (for complete fueling assemblies see respective fuelling nozzle).
| Diametro nominale (DN) | 8 mm |
|---|---|
| Pressione nominale (PN) | 200 bar |
| Campo di pressione | PN = 200 bar | PS = 300 bar |
| Forza di distacco | 222 - 660 N |
| Campo di temperatura | -40 °C fino a +85 °C |
| Materiali | Acciaio inox antiruggine, alluminio |
| Materiali delle guarnizioni | Resistenti al gas metano |
| Esecuzione | Con recupero del gas |
- Azionamento a eccentrico mediante chiave a brugola
- Installazione tra i flessibili di riempimento e di recupero
- Riutilizzabile senza riparazione in officina
- Protezione in gomma
- Struttura piccola e compatta
Inline breakaway coupling for CNG car fueling stations for installation inbetween the filling and venting hoses.
