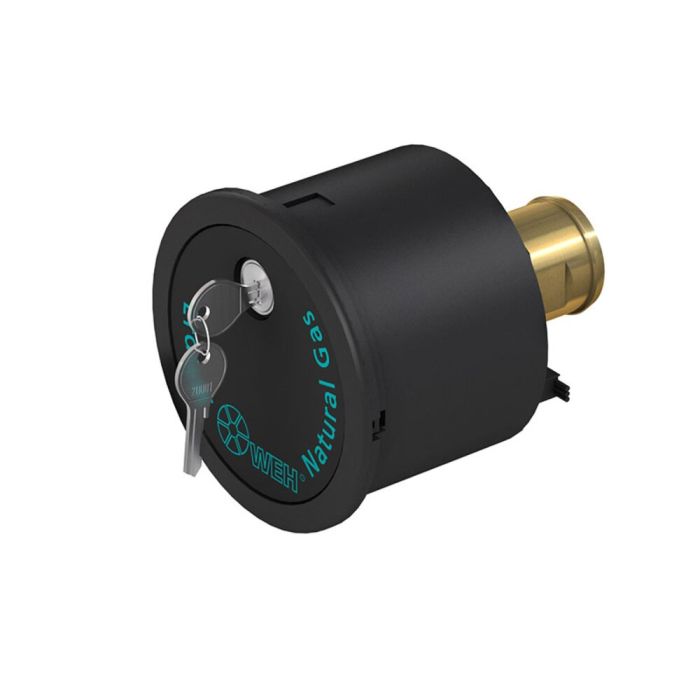

WEH® Fueling System TS50 CNG
WEH offers the fuelling system type TS50 CNG for retrofitting of vehicles to run on compressed natural gas.
The TS50 CNG fuelling system is a CNG conversion kit for quick and easy installation into the vehicle. The two housings can be preinstalled within seconds. The final installation is possible from the inside or outside of the vehicle.
The type TS50 CNG is equipped with a receptacle with filter compatible with the NGV1 profile.
Version 1 and 3 have a starter cut-off micro switch. The micro switch interrupts the starter operation and prevents the vehicle from driving off during refuelling. Version 1 and 2 are additionally equipped with a protection hose for gas venting. In case of a gas leakage the gas is diverted away from the connection.
The interior of the fuelling system is protected by a fuel tank cap from dirt and splash water thus reducing the danger of freezing.
On request type TS50 CNG is also available without tube for protection hose for gas venting and without starter cut-off micro switch.
| Diametro nominale (DN) | 8 mm |
|---|---|
| Campo di pressione | PN = 200 bar | PS = 260 bar (ECE) |
| Campo di temperatura | -40 °C fino a +120 °C (ECE) |
| Materiali | Corpo |
| Materiali delle guarnizioni | Resistenti al gas metano |
| Esecuzione | Con valvola di carica TN1 CNG con filtro (40 μm), interruttore interruzione avviamento (grado di protezione IP67), Manicotto per spurgo del gas con flessibile di protezione, Tappo i raccordi |
| Approval | ECE R110 (si applica a TN1 CNG) |
- Different fuel tank caps; acc. to design
- Ermetico contro lo sporco e gli spruzzi d’acqua
- Approvazione ECE disponibili
- Spurgo del gas con flessibile di protezione (versione 1 + 2)
- Microinterruttore integrato per l’interruzione dell’avviamento (versione 1 + 3)
- Valvola di carica integrata WEH® TN1 CNG (NGV1) con filtro
- Nessun pericolo di formazione di ghiaccio
- Protezione contro l’accesso non autorizzato (versione 1 + 3)
Fueling system for installation in cars. Only use fueling systems with ECE approval for fitment in road legal vehicles.
