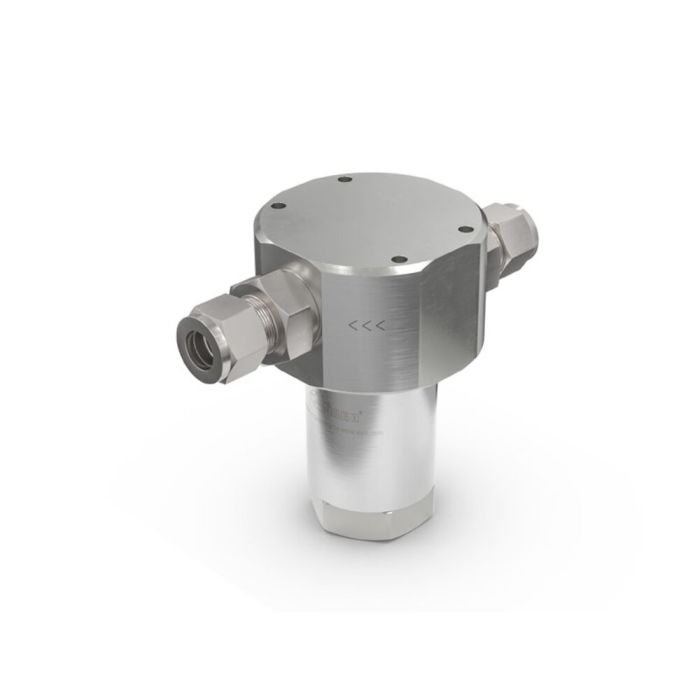

WEH® T-Filter TSF4 H₂
With tube Ø 1/2" on both sides
Codice
C1-73987-X01
0,00 €
When refueling hydrogen, it can often happen that hydrogen with dirt particles is fueled. These contaminated particles in the gas may cause damage to the sealing components. WEH therefore offers the WEH® TSF4 H2 Filter for clean filtered hydrogen. Solid particles are reliably captured.
The filter element can be removed and can be reused after cleaning.
The particle filter is specially designed for installation in vehicles, but can also be installed in fueling stations fueling stations and plants, depending on the application.
| Diametro nominale (DN) | 10 mm |
|---|---|
| Pressione di esercizio PS max ammessa | PS = 350 bar |
| Pressione nominale (PN) | 35 MPa |
| Campo di pressione | PN = 35 MPa | PS = 45 MPa |
| Campo di temperatura | -40 °C fino a +85 °C |
| Ingresso B1 | Tube Ø 1/2", double ferrule fitting |
| Filter Material | 10 μm |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | Incl. fittings (only for filters with tube fitting) |
- Il dispositivo di filtraggio può essere pulito
- Per idrogeno pulito e filtrato
Filter for installation in hydrogen vehicles and fueling stations.
