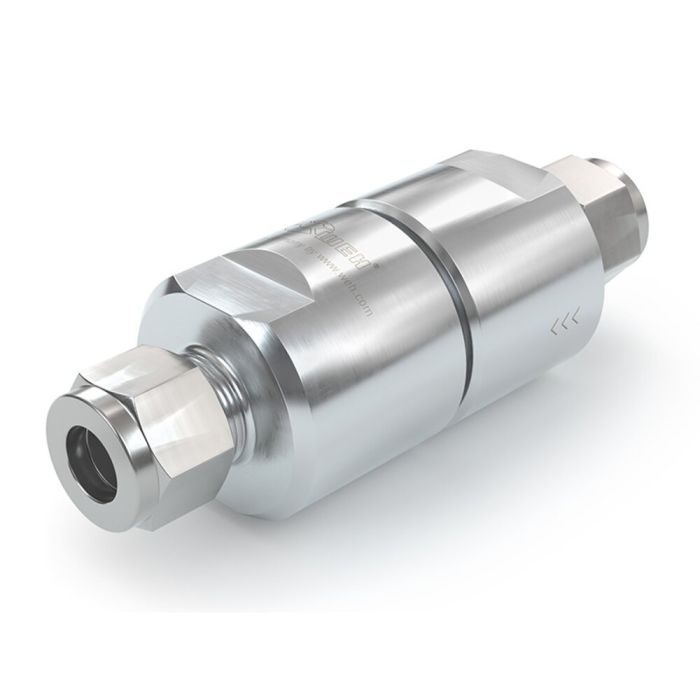

WEH® Filter TSF2 CNG
With tube Ø 8 on both sides
Codice
C1-106746-X01
0,00 €
Contaminants in the gas flow can enter the media flow during refuelling. These dirt particles in the natural gas fuel may cause damage to the sealing components.
WEH, therefore, offers CNG filters for clean natural gas. Solid particles are captured reliably.
The filter element can be removed and is re-usable after having been cleaned.
The TSF2 CNG filter is mainly used for fuelling stations and dispensers.
| Diametro nominale (DN) | 6 mm |
|---|---|
| Campo di pressione | PN = 200 bar | PS = 300 bar |
| Campo di temperatura | -40 °C fino a +85 °C |
| Ingresso B1 | Tubo Ø 8, doppia ogiva |
| Filter Material | 40 μm |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Resistenti al gas metano |
| Esecuzione | Inclusi i raccordi (per collegamento a vite) |
| Approval | Omologazione ECE su richiesta |
- Il dispositivo di filtraggio può essere pulito
- Per gas metano pulito e filtrato
Filter for installation onboard CNG vehicles and in fueling stations. Only use filters with ECE approval for fitment in road legal vehicles.
