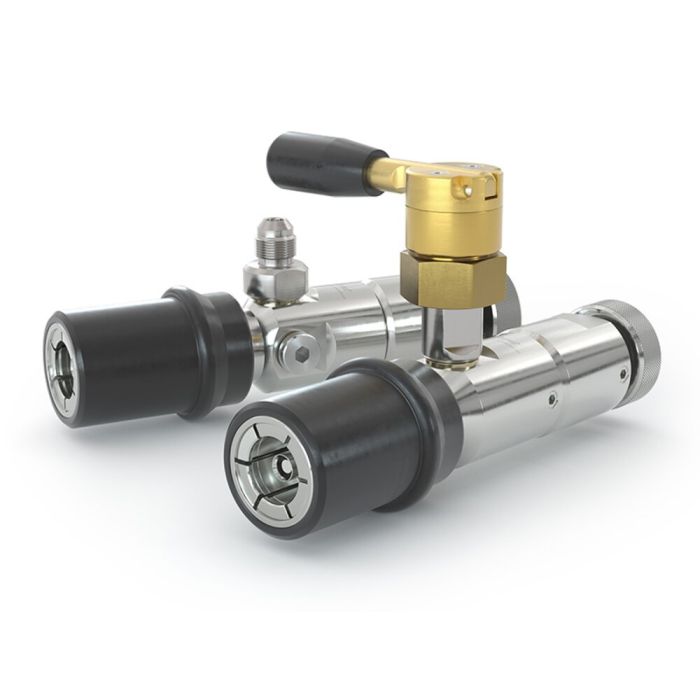

WEH® Defueling Nozzle TK6 CNG
Codice
TK6-CNG
0,00 €
Cars running on natural gas have to be serviced and checked regularly, a process involving the discharge of their pressurized fuel tanks.
The WEH® TK6 CNG defuelling nozzle has been designed for this specific purpose.
The defuelling nozzle is simply engaged onto the receptacle of the car and the knurled spindle fully turned until the receptacle is fully open. Discharge can now take place through the lateral media discharge vent.
| Technical Nominal Size | 6 mm |
|---|---|
| Pressione nominale (PN) | 250 bar |
| Pressione di esercizio PS max ammessa | 350 bar |
| Campo di temperatura | -40 °C up to +85 °C |
| Materiali | Corrosion resistant |
| Materiali delle guarnizioni | Natural gas resistant |
| Esecuzione | With plastic thermal protection, opening spindle and with or without venting valve |
| Peso | Approx. 1.2 kg (2.65 lbs.) with venting valve resp. approx. 1 kg (2.20 lbs.) without venting valve |
- Discharge through the filling receptacle
- Knurled spindle actuation
- Only suitable for WEH® TN1 CNG receptacles (without a filter)
- Option: without venting valve
- Plastic thermal protection
Defueling Nozzle for discharging of CNG fuel tanks of cars through the filling receptacle. Only to be used with WEH® TN1 CNG receptacles without a filter. Operation only by specially trained personnel. Not for self-service operation!
