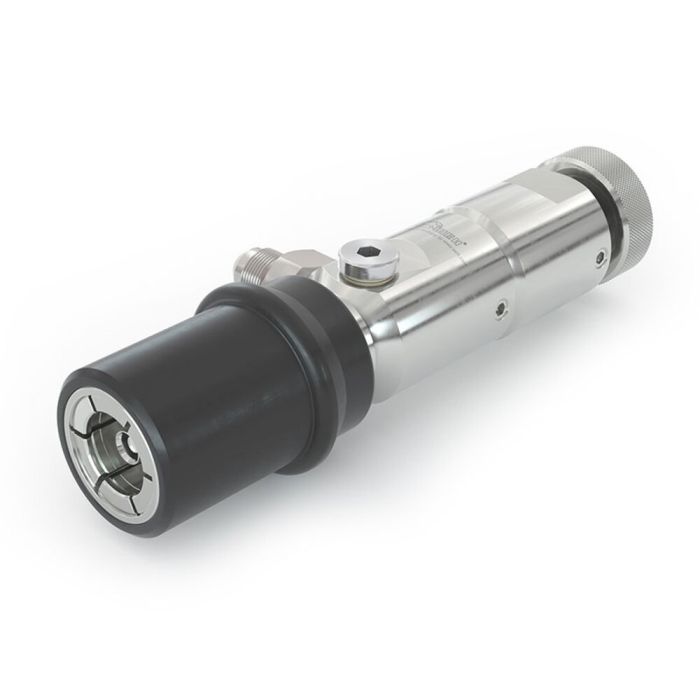

WEH® Defueling Nozzle TK6 CNG
Without venting valve
Codice
C1-105544-X01
0,00 €
Cars running on natural gas have to be serviced and checked regularly, a process involving the discharge of their pressurized fuel tanks.
The WEH® TK6 CNG defuelling nozzle has been designed for this specific purpose.
The defuelling nozzle is simply engaged onto the receptacle of the car and the knurled spindle fully turned until the receptacle is fully open. Discharge can now take place through the lateral media discharge vent.
| Nominal bore (DN) | 6 mm |
|---|---|
| Pressure Range | PN = 250 bar | PS = 350 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Design | Con rivestimento di isolamento termico in materiale sintetico, mandrino di apertura e con o senza valvola di spurgo |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
| Weight | Circa 1 kg |
- Scarico tramite raccordo di riempimento
- Comando tramite mandrino di apertura
- Idoneo solo per valvole di carica WEH® TN1 CNG (senza filtro)
- Opzione: senza valvola di spurgo
- Impugnatura isolato termicamente
Defuelling Nozzle for discharging of CNG fuel tanks of cars through the filling receptacle. Only to be used with WEH® TN1 CNG receptacles without a filter. Operation only by specially trained personnel. Not for self-service operation!
