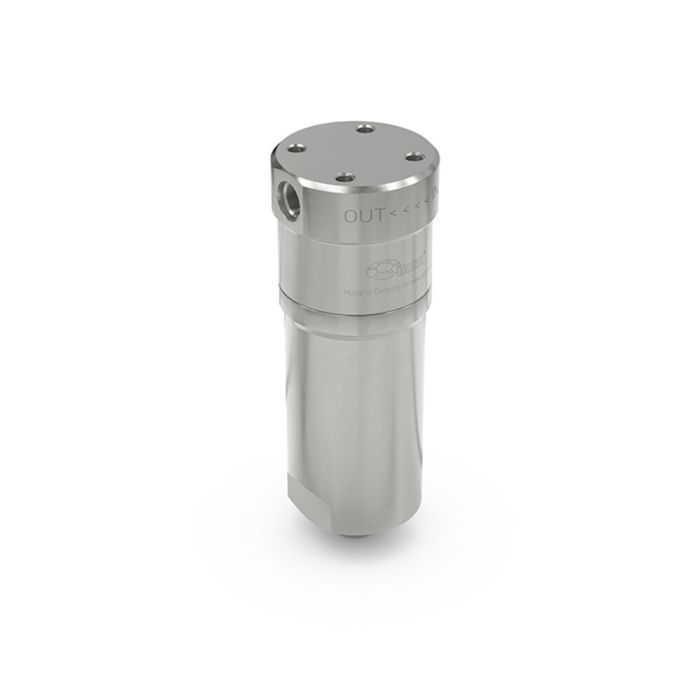

WEH® Coalescing Filter TSF2 H₂
Clean, filtered gases are essential to guarantee the proper function of components for vehicles and filling stations when refueling with hydrogen. The WEH® TSF2 H₂ coalescing filter was developed to remove particles from the gas flow.
When filtering the gas flow, the TSF2 H₂ reliably removes contaminants such as oil, water and dirt particles which are contained in the gas. This contamination is isolated by the coalescing filter. Hydrogen flows through the filter, whereas contaminants such as oil, water and other aerosols coalesce, and drop into the sump of the filter, where they are separated into a drain port.
The WEH® TSF2 H2 is easy to maintain and can be installed onboard vehicles and in fueling stations at any time.
| Nominal bore (DN) | 10 mm |
|---|---|
| Pressione di esercizio PS max ammessa | PS = 490 bar |
| Nominal Pressure PN | 35 MPa |
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18 femmina SAE J1926-1 |
| Filter Material | < 1 μm |
| Design | con tappo |
| Material | Acciaio inossidabile |
| Sealing Material | Restistenti al idrogeno |
| Approval | e1 00 0010 (Regulation (EC) No. 79/2009) |
- Facile manutenzione
- Filtro a maglia fine con elevata capacità di ritenuta dei particolati
- Protegge componenti critici nel sistema di alimentazione
- Resistenza all’usura e alla corrosione
Coalescing filter for installation in hydrogen vehicles and fueling stations.
