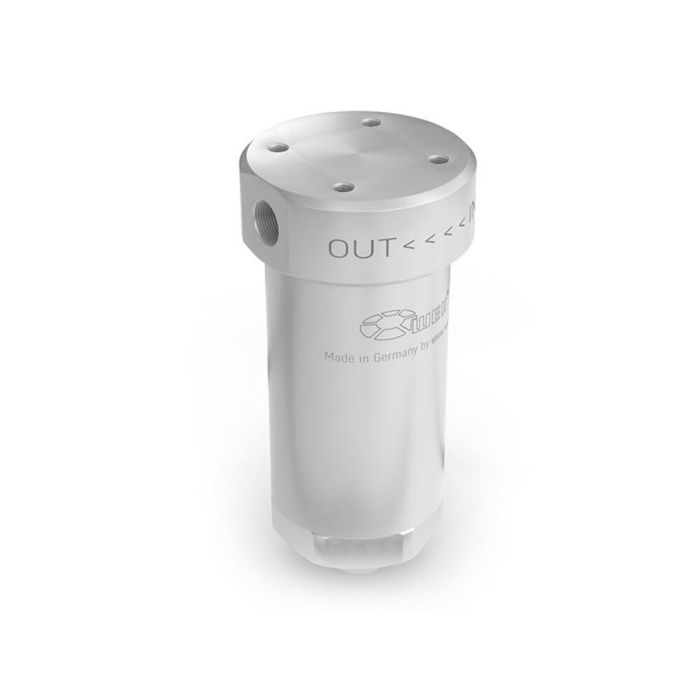

WEH® Coalescing Filter TSF2 CNG
With female thread UNF 9/16"-18 on both sides
Codice
C1-79766
0,00 €
Clean, filtered gases are essential to guarantee the proper function of components for vehicles and fuelling stations when refuelling with natural gas.
The WEH® TSF2 CNG coalescing filter was developed to remove particles from the gas flow.
When filtering the gas flow, the coalescing filter reliably removes contaminants such as oil, water and dirt particles which are contained in the gas. This contamination is isolated by the coalescing filter.
Natural gas flows through the filter, whereas contaminants such as oil, water and other aerosols coalesce, and drop into the sump of the filter, where they are separated into a drain port.
The filters are easy to maintain and can be installed onboard vehicles and in fuelling stations at any time.
| Technical Nominal Size | 4 mm |
|---|---|
| Pressione nominale (PN) | 200 bar |
| Pressione di esercizio PS max ammessa | 260 (ECE) |
| Campo di temperatura | -40 °C fino a +120 °C (ECE) |
| Filter Material | < 1 μm |
| Materiali | Corrosion resistant Housing: aluminium |
| Materiali delle guarnizioni | Natural gas resistant |
| Approval | ECE R110 |
- Aluminium construction
- Ease of maintenance
- ECE approval available
- Fine filter with high particle retention capacity (efficiency of approx. 99.9 % > 0.3 μm)
- For installation onboard CNG vehicles and in fueling stations
- Laterally offset flow possible
- Protection of critical components in the fuel system
Coalescing filter for installation onboard CNG vehicles and in fuelling stations. Only use filters with ECE approval for fitment in road legal vehicles.
