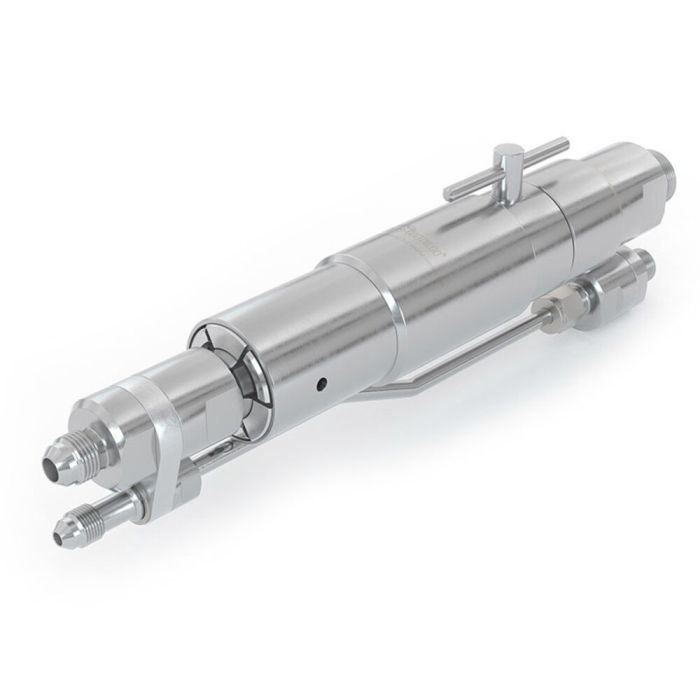

WEH® Breakaway Coupling TSA1 CNG
The TSA1 CNG breakaway coupling offers additional safety for your car fuelling station. The breakaway is installed between the dispenser and the filling/venting hose.
In the event of accidental deployment, e.g. driving a vehicle from the dispenser with the nozzle remaining in the vehicle fuel port, the coupling will separate the connections between dispenser and hose sealing both ends. This protects largely the receptacle, the fuelling nozzle and the dispenser against damage. The detached coupling can be easily reattached and placed back in service after having been function tested.
The breakaway device consists of a coupling body, a receptacle insert and a gas recirculation with check valve. The breakaway is also available without gas recirculation.
We recommend to use breakaways with integrated filter. The filter provides clean natural gas and is easy to maintain. Of course we also offer breakaway couplings without filter.
We also offer complete fueling assemblies consisting of a fuelling nozzle, a hose set and a breakaway coupling (for complete fueling assemblies see respective fuelling nozzle).
| Nominal bore (DN) | 8 mm max. |
|---|---|
| Pressure Range | PN = 200 bar | PS = 300 bar |
| Nominal Pressure PN | 200 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Con recupero del gas e filtro (40 μm) |
| Material | Acciaio inox antiruggine, alluminio |
| Sealing Material | Resistenti al gas metano |
| Break force | 222 - 660 N |
- Valvola di ritegno sulla tubazione di spurgo
- Installazione sul distributore
- Filtro lavabile integrato (40 μm)
- Nessun attrezzo supplementare
- Riutilizzabile senza riparazione in officina
- Struttura piccola e compatta
Breakaway coupling for CNG car fueling stations for installation between the dispenser and the filling/venting hose.
