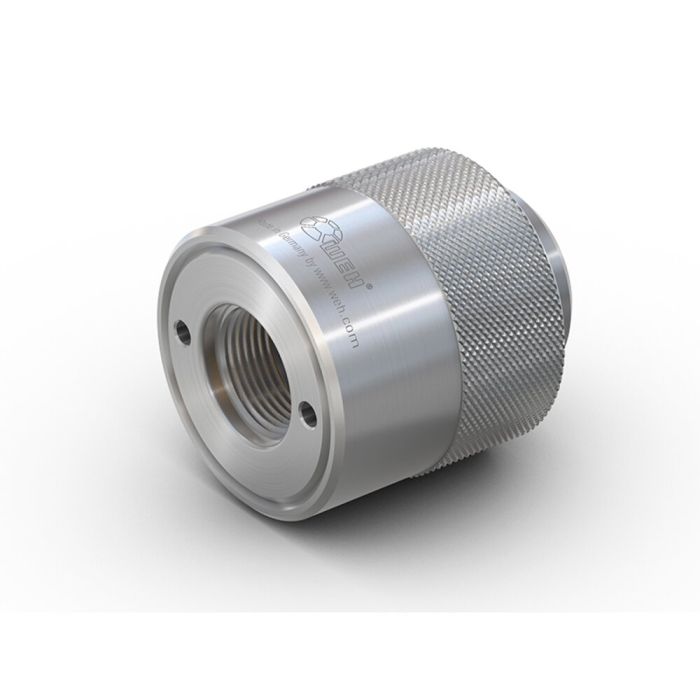

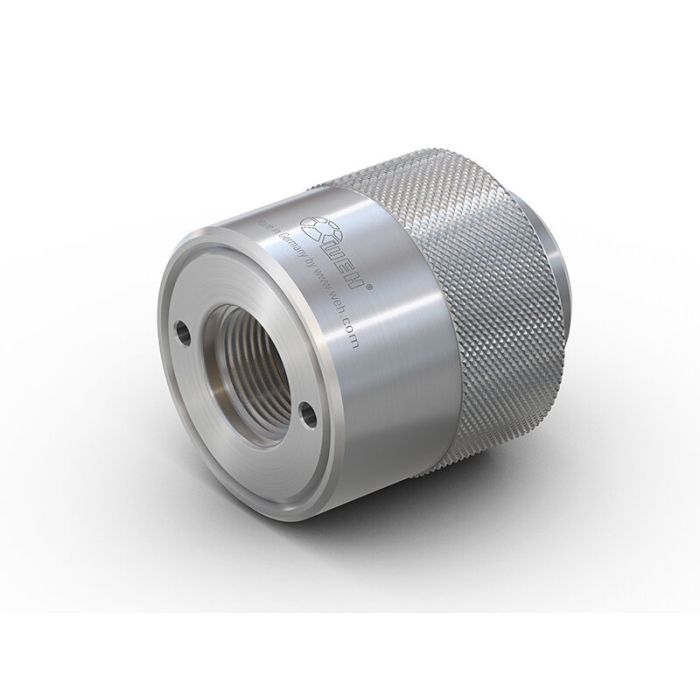

WEH® Bouchon TW04

Pour filetage externe métrique ISO DIN 13 (DIN 3852), M14x1,5, vissage à la main, max. 50 bar

N° d‘article

C1-12418

0,00 €

Le Bouchon WEH® TW04 est l'outil idéal pour obturer des ports à filetage externe pour les essais de mise en pression et en vide jusqu'à 345 bar max.

Visser le connecteur tout simplement à la main sur le port de raccordement de la pièce d'essai jusqu‘à obtenir le contact du joint avec la pièce. Terminé, c‘est étanche! Les outils de serrage et les rubans d‘étanchéité sont inutiles. Cela économise du temps et de l'argent. Des joints anti-usure en NBR répondent bien aux sévères conditions de la production industrielle et sont très durables.En outre, le connecteur est extrêmement facile à entretenir avec un changement de joints tout à fait simple et rapide, minimisant ainsi les temps d'arrêt.

WEH® TW04 est disponible comme bouchon ou connecteur avec raccord fluide.

Caractéristiques Techniques

Caractéristiques Techniques
Pression de service PS max. admissible	Vacuum up to 50 bar (725 psi)
Plage de température	+5 °C jusqu‘à +80 °C
Raccordement A	M14x1.5 male thread
Entrée fluide B1	G1/4" female thread
Taux de fuite	1 x 10^-3 mbar x l/s
Actionnement	Hand-tightening
Matériaux	Corrosion resistant stainless steel
Matériaux d'étanchéité	Front seal of polyurethane or NBR

Caractéristiques

Ergonomic design
High-grade materials
Pressure-tight connections by hand-tightening
Simple seal replacement

Téléchargements

Description	Type de document	Langue	Format de fichier	Taille du fichier

Variantes de produit

N° d‘article	Entrée fluide B1	Raccordement A	Pression de service PS max. admissible
C1-119973	UNF 7/16"-20 male thread, SAE J514, 37° cone	UNF 7/16"-20 male thread	Vacuum up to 345 bar (5,000 psi)
C1-119975	UNF 7/8“-14 male thread, SAE J514, 37° cone	UNF 7/8"-14 male thread	Vacuum up to 276 bar (4,000 psi)
C1-119976	UN 1 1/16"-12 male thread, SAE J514, 37° cone	UN 1 1/16"-12 male thread	Vacuum up to 172 bar
C1-12410	G1/8" female thread	M10x1.0 male thread	Vacuum up to 50 bar (725 psi)
C1-12418	G1/4" female thread	M14x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12419	G1/4" female thread	M12x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12424	G3/8" female thread	G3/8" male thread	Vacuum up to 50 bar (725 psi)
C1-12425	G3/8" female thread	M16x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12427	G3/8" female thread	M18x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12434	G1/2" female thread	G1/2" male thread	Vacuum up to 50 bar (725 psi)
C1-12435	G1/2" female thread	M22x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12436	G1/2" female thread	M20x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12442	G3/4" female thread	G3/4" male thread	Vacuum up to 50 bar (725 psi)
C1-12443	G3/4" female thread	M26x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12444	G3/4" female thread	M24x1.5 male thread	Vacuum up to 50 bar (725 psi)
C1-12447	G1" female thread	G1" male thread	Vacuum up to 50 bar (725 psi)
C1-12448	G1" female thread	NPT 1" male thread	Vacuum up to 50 bar (725 psi)
C1-17172	UNF 3/4"-16 male thread, SAE J514, 37° cone	UNF 3/4"-16 male thread	Vacuum up to 276 bar (4,000 psi)
C1-173837	G3/4" female thread	NPT 3/4" male thread	Vacuum up to 50 bar (725 psi)
C1-181156	G1/8" female thread	NPT 1/8" male thread	Vacuum up to 50 bar (725 psi)
C1-187463	G1/8" female thread	G1/8" male thread	Vacuum up to 50 bar (725 psi)
C1-187464	G3/8" female thread	NPT 3/8" male thread	Vacuum up to 50 bar (725 psi)
C1-187466	G1/4" female thread	G1/4" male thread	Vacuum up to 50 bar (725 psi)
C1-187467	G1/4" female thread	NPT 1/4" male thread	Vacuum up to 50 bar (725 psi)
C1-187468	G1/2" female thread	NPT 1/2" male thread	Vacuum up to 50 bar (725 psi)
C1-96356	UNF 9/16"-18 male thread, SAE J514, 37° cone	UNF 9/16"-18 male thread	Vacuum up to 345 bar (5,000 psi)
