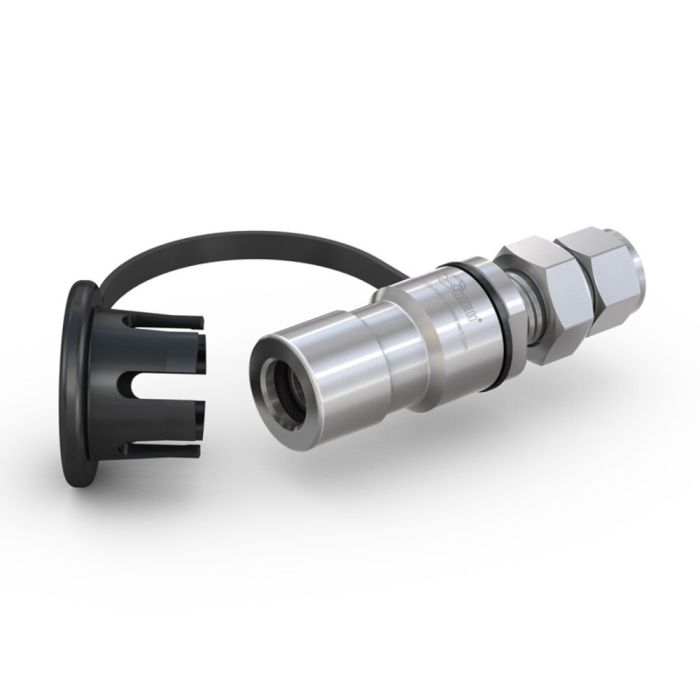

WEH® Receptacle TN5 CNG (ECE)
The WEH® TN5 CNG receptacle is designed specifically for bus and truck refueling. Due to the internal aerodynamic design the TN5 CNG receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling. very durable unit, minimizing maintenance and down-time. The TN5 CNG also has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle.
Technical Data Technical Nominal Size 12 mm Nominal Pressure PN 200 bar Max. allowable operating pressure PS 260 bar Temperature Range -40 °C up to +120 °C (ECE) Material Corrosion resistant Sealing Material Natural gas resistant Design With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) Conformity / Tests / Approvals ECE R110
Coding for pressure range / gas type Compatible with fueling nozzles acc. to NGV1 standard and ISO 14469 ECE approval available Integrated high-flow check valve Low-noise refueling Option: integrated particle filter (50 μm) Sealing-friendly design Receptacle for CNG refueling / filling of buses and trucks and fork-lift trucks or other industrial applications, to be used with WEH® Fueling nozzles acc. to NGV1 standard and ISO 14469. Only use receptacles with ECE approval for fitment in road legal vehicles.
Description Document type Language File type File size
Product variants
Part no. Technical Nominal Size Max. allowable operating pressure PS Design C1-101485 10 mm 260 bar Without protection cap C1-101906 8 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-106903 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-108330 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-108583 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-35401-X1 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-35432-X1 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-42194-X1 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-49817-X1 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-81615 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-84168 14 mm 260 bar Without protection cap
