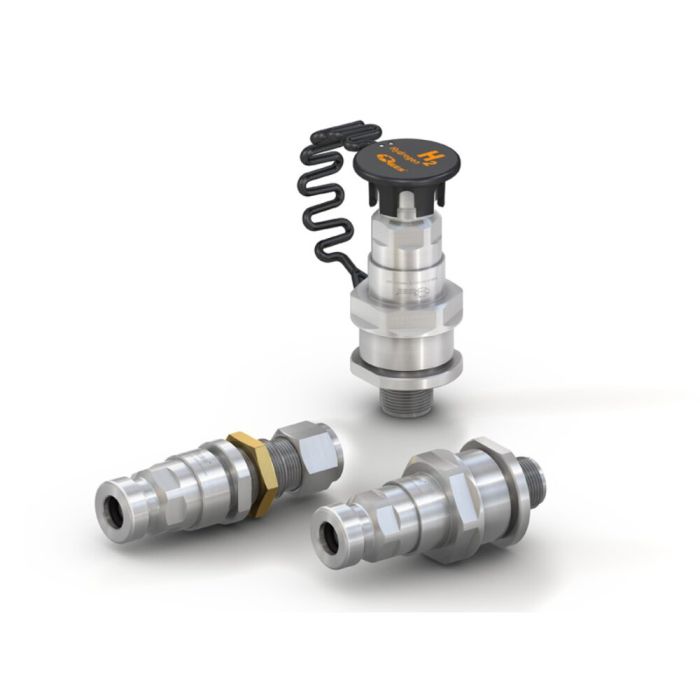

WEH® Receptacle TN1 H₂ Medium-Flow
The WEH® TN1 H2 Medium-Flow Receptacle waswas developed for higher flow requirements. This enables buses and trucks to be refueled from now on at car fueling stations.
Due to the aerodynamic design of the internal shapes of the receptacle, noise during refueling process is mostly eliminated, while at the same time maximum flow rate is enabled. The internal seals are arranged to largely prevent damage to the sealing components. That is why the WEH® TN1 H2 Medium-Flow proves to be extremely robust and durable, minimizing downtimes due to low maintenance.
The receptacle is equipped with an integrated check valve and has a coding for pressure range / gas type.
Enhanced safety by integrated particle filter
The use of an integrated particle fi lter prevents the ingress of dirt particles from the outside and therefore leakage at the receptacle is almost eliminated.
| Technical Nominal Size | 6 mm |
|---|---|
| Nominal Pressure PN | 35 MPa |
| Max. allowable operating pressure PS | PS (MAWP) = 43.75 MPa |
| Temperature Range | -40 °C up to +85 °C |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Design | With protection cap, integrated particle filter (40 μm), integrated check valve and fittings (only for receptacles with tube fitting) |
| Coding | H35MF Grade D according to ISO 17268-1:2025 |
| Conformity / Tests / Approvals | e1 00 0003 (Regulation (EC) No. 79/2009) |
- Coding for pressure range / gas type
- Integrated high-flow check valve
- Integrated self-cleaning particle filter (40 μm)
- Low-noise refueling
- Sealing-friendly design
Receptacle for hydrogen refueling / filling of buses, trucks and fork-lift trucks or other industrial applications, to be used with WEH® Fueling nozzles.
