WEH® Pro Set TW111
With 90° media inlet
Part no.
C1-161410
€0.00
WEH® Service Connector TW111 for filling refrigerants on 'Schrader valves'
With the WEH® Pro Set, you are perfectly equipped for filling refrigerants.

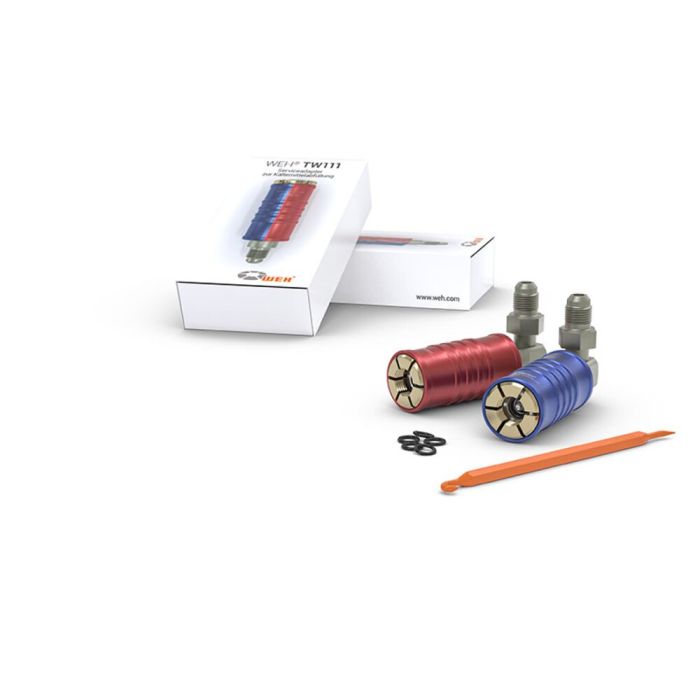

The Pro Set consists of one WEH® Connector TW111 with inline media inlet for the high pressure port (red) and for the low pressure port (blue), front seal set (5 units) and O-ring picker.
The service connector TW111 with 90° media inlet is also available in a convenient Pro Set.
Of course, all components are also available individually.
| Operating Pressure | 42 bar (610 psi) |
|---|---|
| Temperature Range | -10 °C up to +80 °C |
| Connection A | UNF 7/16"-20 male thread |
| Media Inlet | UNF 7/16"-20 male thread |
| Leak Rate | 1 x 10-3 mbar x l/s |
| Actuation | Manual actuation via sliding sleeve |
| Design | With integrated shut-off valve |
| Material | Brass and anodized aluminium |
| Sealing Material | EPDM |
- 99 % less refrigerant loss
- Connection in seconds
- Different versions available
- For connection to Schrader valves
- High-grade materials
- No frostbitten or burned hands
- No hand tightening required
- Reduces connection times and costs
- WEH® Jaw Locking Mechanism
