WEH® Pro Set Connectool 111
With inline media inlet
Part no.
C1-161409-Connectool
€0.00
With the Connectool Pro Sets, you are perfectly equipped for filling refrigerants.
Pro Sets are available in two designs:

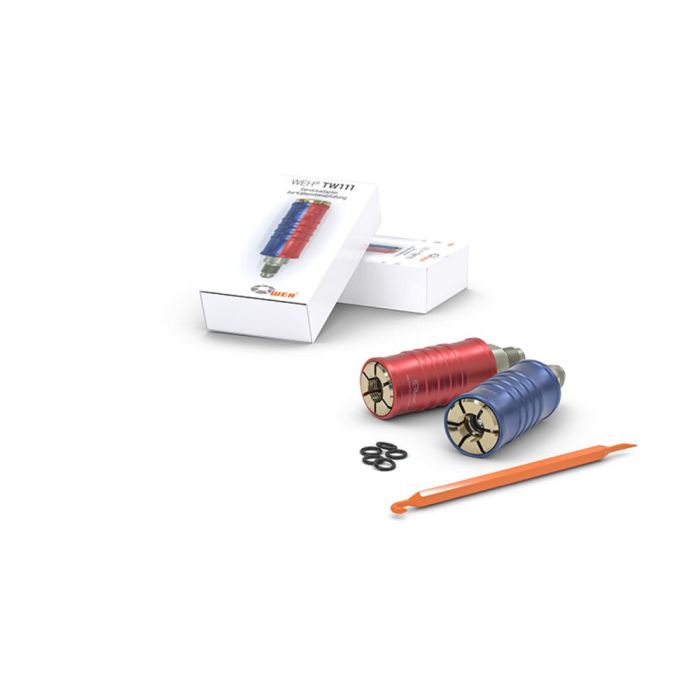

Pro Set 1 – consisting of service connector TW111 with in-line media inlet for the high pressure port (red) and for the low pressure port (blue), front seal set (5 units) and O-ring picker
Pro Set 2 – consisting of service connector TW111 with 90° media inlet for the high pressure port (red) and for the low pressure port (blue), front seal set (5 units) and O-ring picker
| Max. allowable operating pressure PS | 42 bar (610 psi) |
|---|---|
| Temperature Range | -10 °C up to +80 °C |
| Connection A | UNF 7/16"-20 male thread |
| Media Inlet | UNF 7/16"-20 male thread |
| Leak Rate | 1 x 10-3 mbar x l/s |
| Actuation | Manual actuation via sliding sleeve |
| Material | Brass and anodized aluminium |
| Sealing Material | EPDM |
| Design | With integrated shut-off valve |
- 99 % less refrigerant loss
- Connection in seconds
- Different versions available
- For connection to Schrader valves
- High-grade materials
- No frostbitten or burned hands
- No hand tightening required
- Reduces connection times and costs
- WEH® Jaw Locking Mechanism
Quick connector for filling and evacuating refrigerants of industrial refrigerating and air conditioning systems with Schrader valve acc. to SAE J513.
