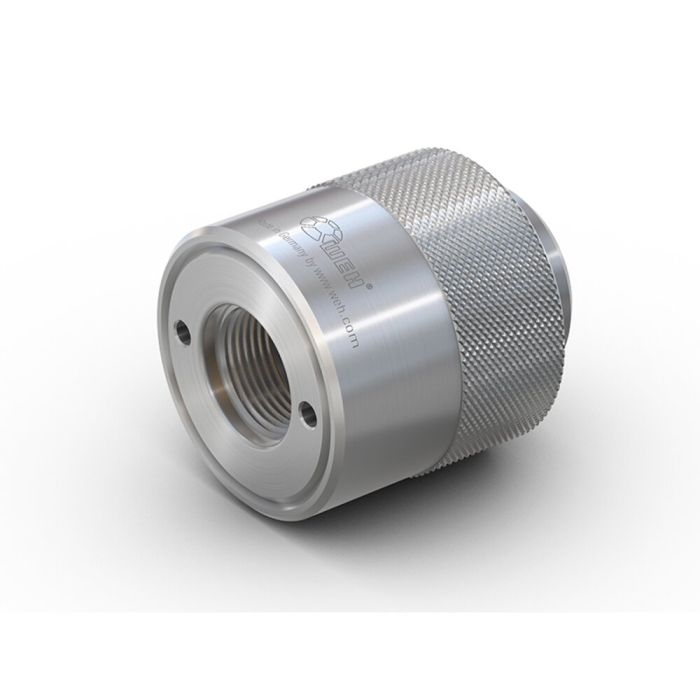

WEH® Plug TW04
for sealing of components with male thread, manual actuation, vacuum up to max. 345 bar
Part no.
TW04 Stopfen
€0.00
The WEH® Plug TW04 is the perfect tool for sealing ports with external thread for pressure and vacuum testing applications up to 345 bar max.
Only place the connector onto the threaded port and hand-tighten it until the o-ring seal contacts the test piece - the pressure-tight connection is established. The WEH® TW04 seals without wrenches, sealants or tape saving connection time & costs. Wear-resistant NBR seals meet most industrial requirements and are very durable. The connector is extremely easy to maintain with simple seal replacement and minimizes down-time.
WEH® TW04 is available as a connector with media inlet and as a plug.
| Max. allowable operating pressure PS | Vacuum up to 50 bar (725 psi) |
|---|---|
| Temperature Range | +5 °C up to +80 °C |
| Leak Rate | 1 x 10-3 mbar x l/s |
| Actuation | Hand-tightening |
| Material | Corrosion resistant stainless steel |
| Sealing Material | Front seal of polyurethane or NBR |
- Ergonomic design
- High-grade materials
- Pressure-tight connections by hand-tightening
- Simple seal replacement
