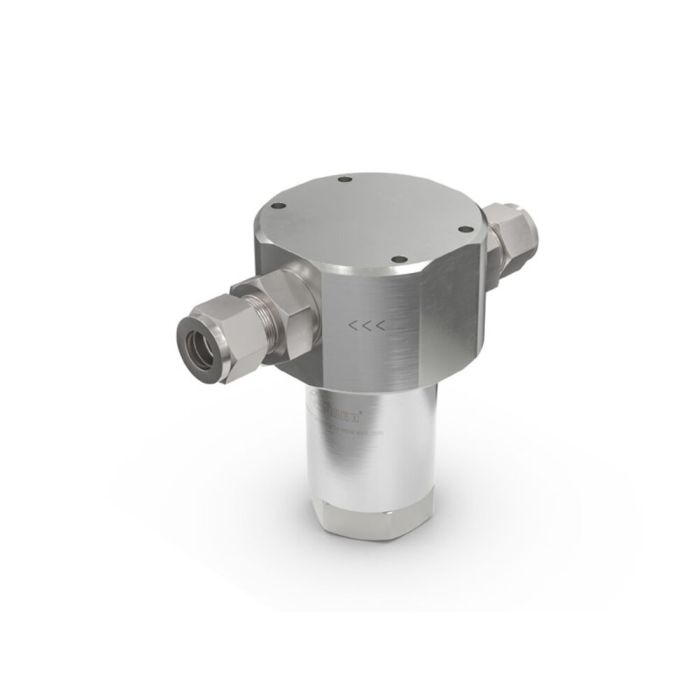

WEH® T-Filter TSF4 H₂
With tube Ø 12 on both sides
Part no.
C1-58026-X01
€0.00
When refueling hydrogen, it can often happen that hydrogen with dirt particles is fueled. These contaminated particles in the gas may cause damage to the sealing components. WEH therefore offers the WEH® TSF4 H2 Filter for clean filtered hydrogen. Solid particles are reliably captured.
The filter element can be removed and can be reused after cleaning.
The particle filter is specially designed for installation in vehicles, but can also be installed in fueling stations fueling stations and plants, depending on the application.
| Nominal bore (DN) | 10 mm |
|---|---|
| Max. allowable operating pressure PS | PS = 450 bar |
| Pressure Range | PN = 35 MPa | PS = 45 MPa |
| Nominal Pressure PN | 35 MPa |
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | Tube Ø 12, double ferrule fitting |
| Filter Material | 10 μm |
| Design | Incl. fittings (only for filters with tube fitting) |
| Material | Corrosion resistant stainless steel |
| Sealing Material | Hydrogen resistant |
- Filter insert can be cleaned
- For hydrogen free of impurities
Filter for installation in hydrogen vehicles and fueling stations.
