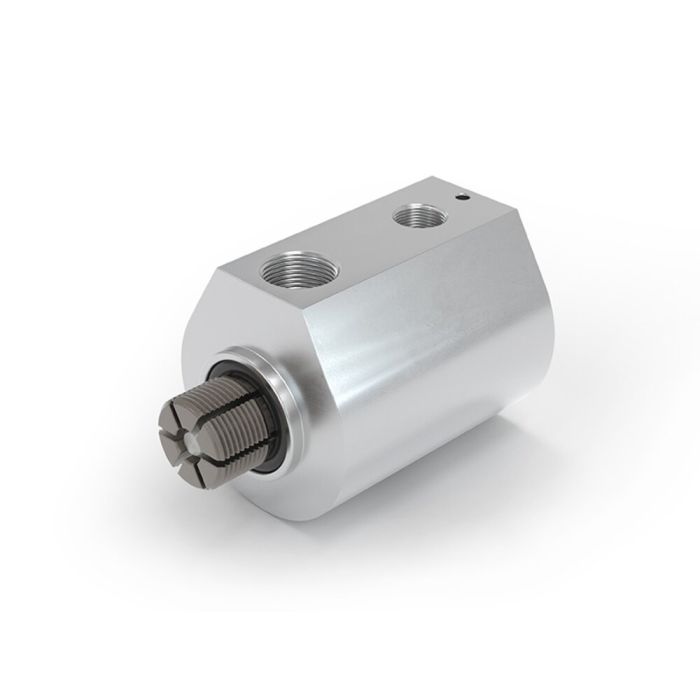

WEH® Connector TW26
Special short design
The WEH® TW26 Quick Connector is ideal for hydraulic and pneumatic pressure and function tests on components with internal thread. The higher the test pressure the tighter the WEH® Connector will clamp itself into the thread of the test piece and provides a pressure-tight connection in seconds. The front o-ring reliably seals the connection and no additional clamping devices are required. Time-consuming and expensive testing devices are eliminated.
The main advantages of the WEH® TW26 Connector is its compact construction and ergonomic design.
If the connector is to be used as a plug, the media inlet ‘B1‘ can be sealed.
| Max. allowable operating pressure PS | Max. 50 bar |
|---|---|
| Pilot Pressure | 6 - 12 bar compressed air |
| Pilot Pressure Port P1 | G1/8" female thread |
| Temperature Range | +5 °C up to +80 °C |
| Connection A | M12x1.5 female thread |
| Media Inlet | G1/4" female thread |
| Leak Rate | 1 x 10-3 mbar x l/s |
| Actuation | Pneumatic actuation |
| Material | Corrosion resistant |
| Sealing Material | NBR |
| Design | Without fittings |
| Conformity / Tests / Approvals | PED 2014/68/EC |
- Connection in seconds
- No hand tightening required
- WEH® Jaw Locking Mechanism
- Testing devices are eliminated
- Compact design
- High-grade materials
- Simple and inexpensive seal replacement
Quick connector for pneumatic and hydraulic pressure and function testing with liquid and gaseous media of components with female thread.
