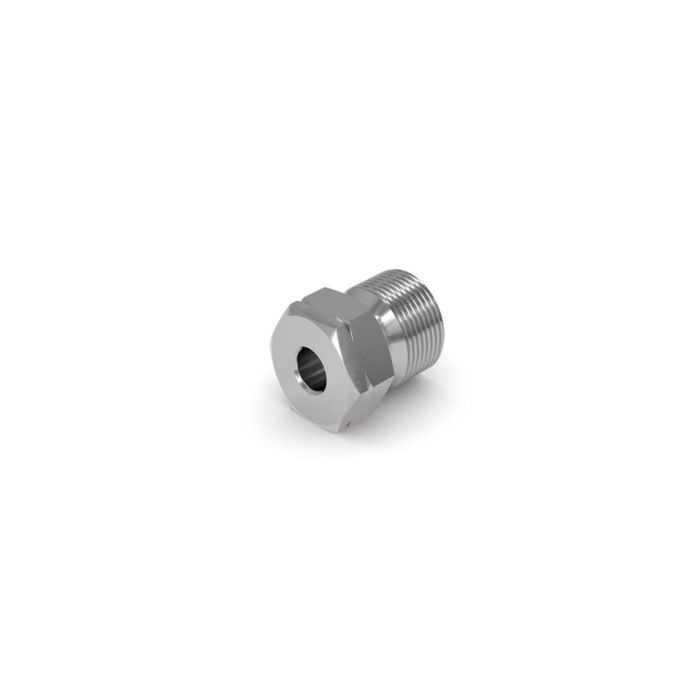

Glands
Tubing Size: 9/16", Thread size: 1 1/8"-12 UNF
Part no.
C1-185592
€0.00
Glands for the fittings used in the high pressure area. Our pressure screws are interchangeable with almost all common high pressure fittings. For easier differentiation, our glands are specially marked on the wrench flat: One groove for metric thread and two grooves for imperial thread.
The glands are manufactured using stainless steel.
The connection geometry is an high pressure fitting 60° cone & thread.
- Suitable for external tube diameter: 9/16"
- Thread size B1: 1 1/8"-12 UNF
