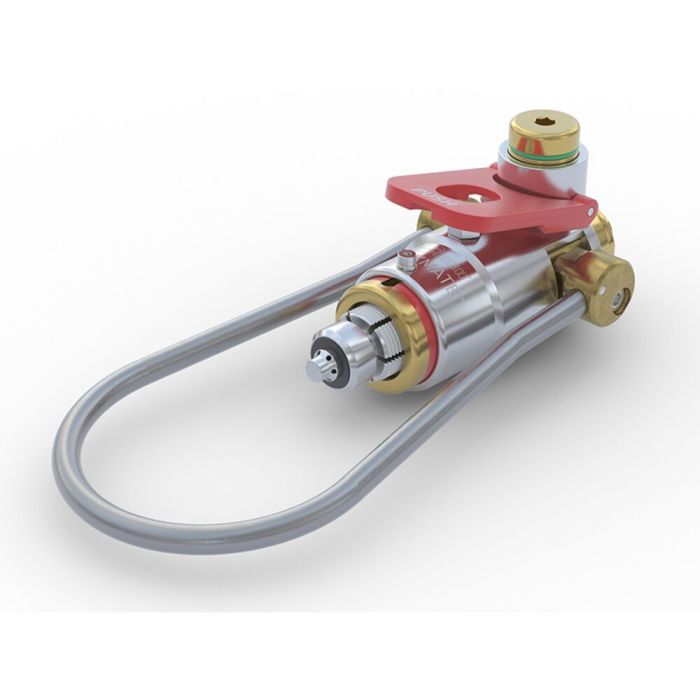

CLICKMATE® Connector TW154

For hose filling of BA cylinders with female thread G5/8 (DIN 477) at filling rigs 300 bar, loop no. 1

Part no.

C1-109698-X01

€0.00

CLICKMATE® TW154 quick connector is designed for fi lling respiratory air cylinders. Existing connectors for hose fi lling can be upgraded without problems.

The CLICKMATE® TW154 uses the split collet thread design that locks securely into standard threads of cylinder valves. Connection is made by lowering the operating loop through 90° which locks the split collet jaws into the cylinder valve and actuates the sealing piston. An integrated safety mechanism prevents disconnection under pressure.

CLICKMATE® TW154 is available, among others, for breathing air cylinders with a nominal operating pressure of 200 bar resp. 300 bar. For differentiation, the connector for 200 bar is equipped with a black locking lever and the connector for 300 bar with a red locking lever.

The quick connector is equipped with a NBR front seal and inner seals of FKM. Other sealing materials are available on request. It is the customer‘s responsibility to clarify the media compatibility.

All connector are subjected to extensive pressure and durability tests prior to their introduction to the product range.

Technical Data

Technical Data
Max. allowable operating pressure PS	375 bar (5,440 psi)
Temperature Range	+5 °C up to +70 °C
Medium	Breathing air (compressed air)
Connection A	Standard connection for G5/8“ female thread (DIN 477/ DIN EN ISO 12209)
Media Inlet	M16x1.5 male thread
Actuation	Manual actuation via operating loop (loop depending on cylinder valve type)
Material	Corrosion resistant stainless steel and brass
Sealing Material	Front seal: NBR Inner seals: FKM

Features & Benefits

Connection directly to the standard cylinder valve thread
Filling of breathing air cylinders becomes even easier and more efficient
Improves operational safety and ergonomics
Quick connection in seconds without hand tightening

Application

Quick connector for filling of BA cylinders in fi re bridage respiratory protection workshops, either directly on the filling hose or on the filling rigs. For direct connection to existing filling rigs, it can only be used with weight and height compensation (see TZ100).

CAD

Download CAD Files

Downloads

Description	Document type	Language	File type	File size

	Part no.	Product Name
	C1-109695-X01	CLICKMATE® Connector TW154 for filling breathing air cylinders with female thread G5/8 (DIN 477) at filling rigs 200 bar, loop no. 1
	C1-109696-X01	CLICKMATE® Connector TW154 for filling breathing air cylinders with female thread G5/8 (DIN 477) at filling rigs 300 bar, loop no. 1
	C1-109697-X01	CLICKMATE® Connector TW154 for hose filling of BA cylinders with female thread G5/8 (DIN 477) at filling rigs 200 bar, loop no. 1
	C1-109698-X01	CLICKMATE® Connector TW154 for hose filling of BA cylinders with female thread G5/8 (DIN 477) at filling rigs 300 bar, loop no. 1
	C1-92774-X01	CLICKMATE® Connector TW154 for filling breathing air cylinders with female thread G5/8 (DIN 477) at filling rigs 200 bar, loop no. 72
	C1-92775-X01	CLICKMATE® Connector TW154 for filling breathing air cylinders with female thread G5/8 (DIN 477) at filling rigs 300 bar, loop no. 72
	C1-92776-X01	CLICKMATE® Connector TW154 for hose filling of BA cylinders with female thread G5/8 (DIN 477) at filling rigs 200 bar, loop no. 72
	C1-92777-X01	CLICKMATE® Connector TW154 for hose filling of BA cylinders with female thread G5/8 (DIN 477) at filling rigs 300 bar, loop no. 72
