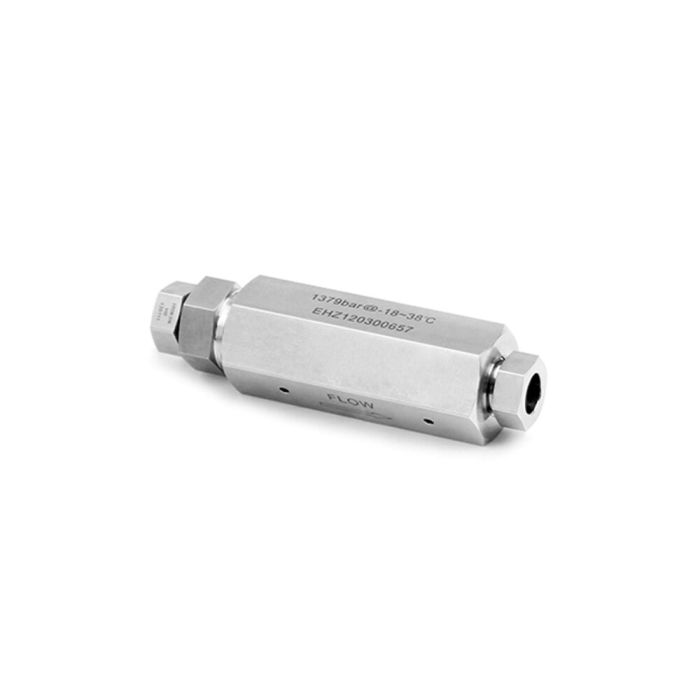

WEH® Check valves (Medium pressure)
13/16“-16 UNF, TNW 9.12 mm, 1,379 bar / 20,000 psi
Part no.
C1-191934
€0.00
Wherever a medium needs to flow in just one direction within a pipeline system and return flow needs to be prevented, WEH® check valves fulfil this function with absolute reliability.
WEH® check valves for medium pressure applications are available in two versions:
- with o-ring seaingl for special tightness requirements, especially for gaseous media
- with metal ball sealing for frequent pressure changes and lower tightness requirements, especially for liquid media.
| Technical Nominal Size | 9.12 mm |
|---|---|
| Max. operating pressure at B2 | PS = 1,379 bar / 20,000 psi |
| Pressure Range (PS) | 1,379 bar / 20,000 psi |
| Cracking Pressure | 0.97 - 1.79 bar (14 - 26 psi) |
| Temperature Range | O-ring-version: -17.8°C up to +204°C |
| Material | High-strength stainless steel |
| Sealing Material | FKM |
| Design | O-Ring Sealing |
| Connection geometry | Medium pressure fitting 60° Cone & Thread |
| Conformity / Tests / Approvals | Pressure equipment type: Pipe-like, pressure-retaining equipment in accordance with Article 2 No. 5 of the Pressure Equipment Directive Classification: Article 4, paragraph 3 |
- Delivery includes pre-assembled pressure rings and pressure screws
- High flow rate thanks to large technical nominal sizes
- Available in two versions (with o-ring or ball seal)
- Suitable for pipe threads from 1/4“ to 1” (external diameter)
WEH® medium pressure check valves are designed for applications with both liquid and gaseous media of fluid group 2 DGR.
Special versions are available for hydrogen applications. Please inquire!
