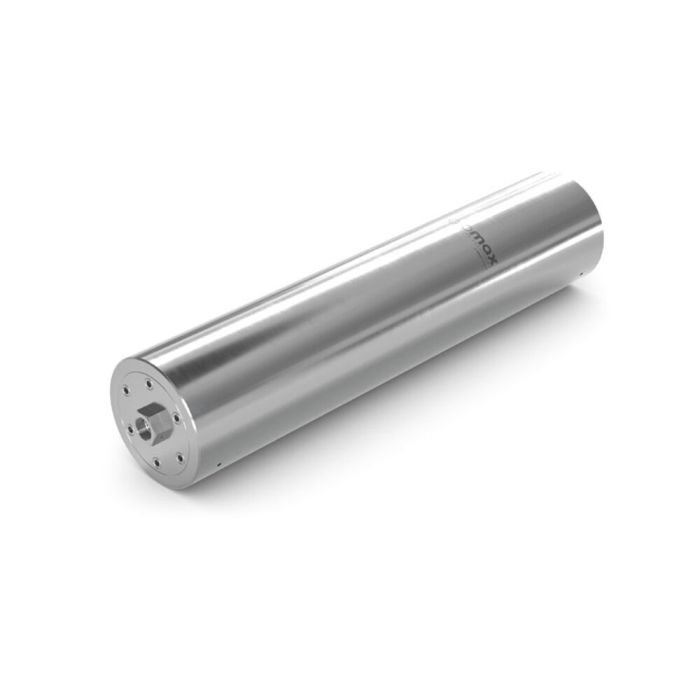

main product photo

baromax Pressure Vessel

With 1,500 bar, M30x2

Talk to our product experts – practical, experienced, and solution-oriented:

Part no.
C1-186688
€0.00

Wish List Compare

High-Pressure Vessels – Compact Energy Storage for the Most Demanding Applications

High-pressure vessels are designed for the safe storage of fluids under extreme pressure. The stored energy can be precisely released – for example, for emergency power supply, to dampen pressure spikes, or to compensate for oil losses in hydraulic systems.

Thanks to their robust construction made of premium-grade steel, high-pressure vessels are particularly durable and require minimal maintenance. They are versatile and can be used in test benches, energy systems, or specialized industrial applications. Their smart design and easy access to all connections also simplify installation and maintenance within the system.

Your benefits at a glance:

  • Reliable pressure storage up to 3,000 bar

  • Versatile applications: damping, emergency supply, energy storage

  • Customized solutions – we design and manufacture high-pressure vessels tailored to your individual requirements

  • Modular expandability – e.g., by integrating a spindle pump for precise pressure control

  • Available as reaction vessels (autoclaves) for processes under controlled conditions

  • Easy installation thanks to well-thought-out design and optimal accessibility to all connections

Choose high-pressure vessels made in Germany – for maximum process reliability, efficiency and durability.

Versions for additional media types, pressure ranges and temperature applications are available upon request.
Technical Data
Nominal bore (DN)16 mm
Technical Nominal Size7 mm
Pressure Range (PS)1,500 bar
Temperature Range+5 °C up to +50 °C
Possible pressure rangesPS = 500 up to 3,000 bar
Possible volumes 0.25 up to 30 l
Max. possible external diameterØ350 mm
Max. possible length2,000 mm
MediumHydraulic oil according to fluid group 2
MaterialHigh-strength stainless steel
Connection system Cone and threaded screw connection
Conformity / Tests / ApprovalsPressure equipment type: Vessels according to Article 2, No. 2 of the Pressure Equipment Directive
Classification: Depending on version
  • Good accessibility to all connections
  • Easy installation in any installation position
  • Low-maintenance and durable construction made of high-quality steel
  • Volume and operating pressure adaptable to customer requirements
Application

baromax high-pressure vessels have been specifically developed for use in high-pressure environments and are particularly suited for hydroforming processes where maximum load capacity and precise pressure control are essential.

As high-pressure accumulators, they provide reliable energy storage in the form of pressure – in both hydraulic and pneumatic systems. They maintain media such as hydraulic oil or compressed air at a constant pressure and release it in a controlled manner when needed.

They protect your high-pressure system by:

  • Compensating for pressure fluctuations

  • Absorbing load peaks

  • Buffering energy to improve process efficiency
